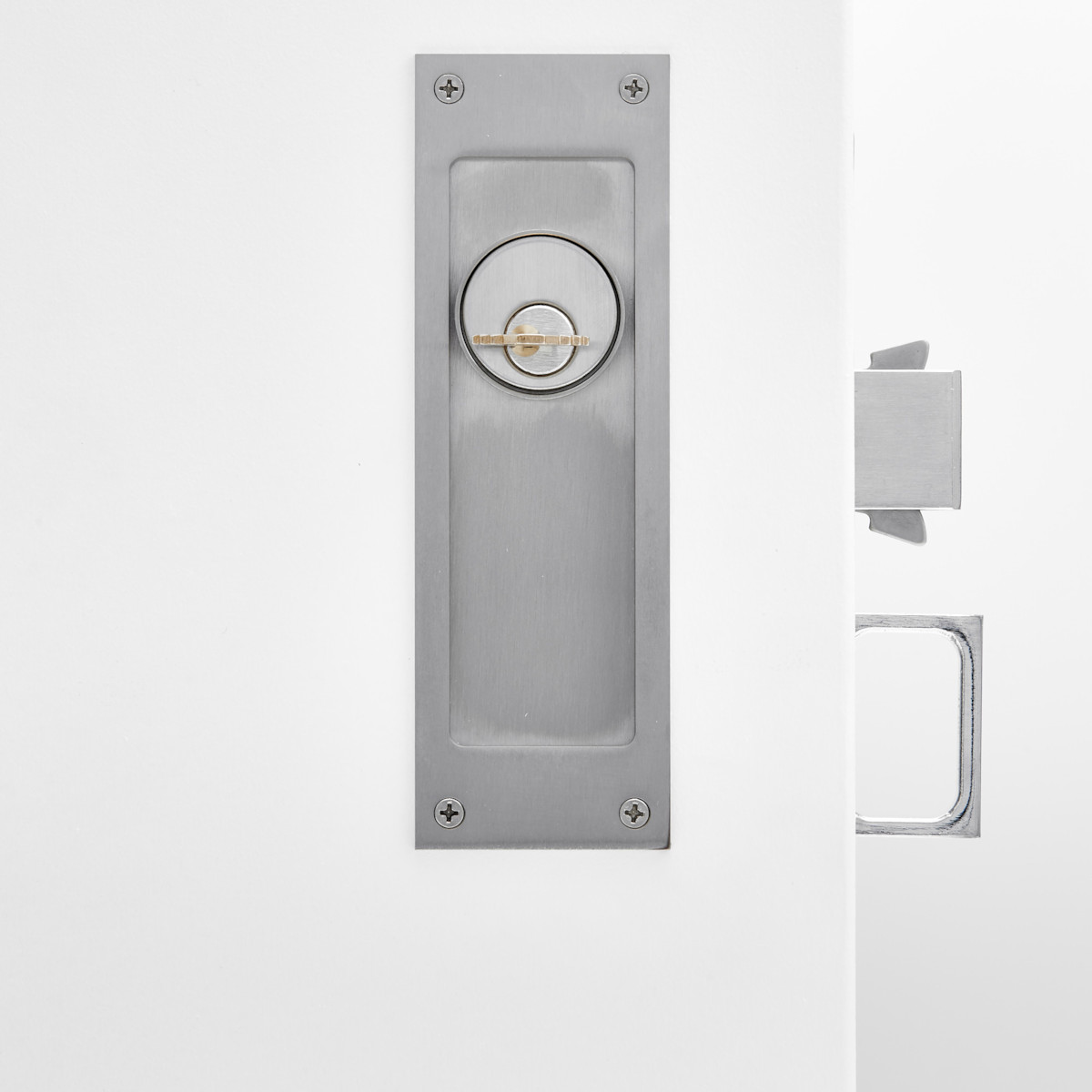

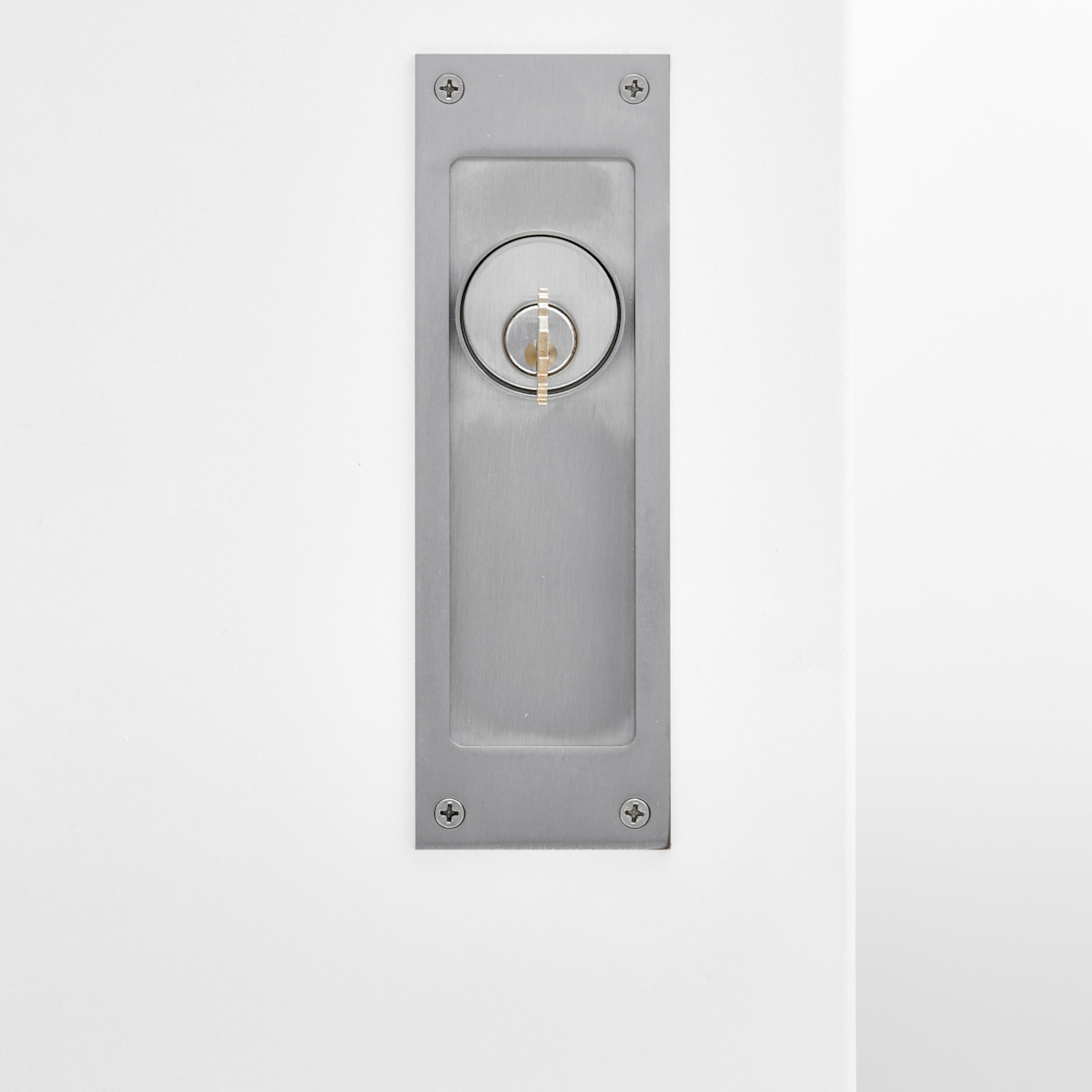

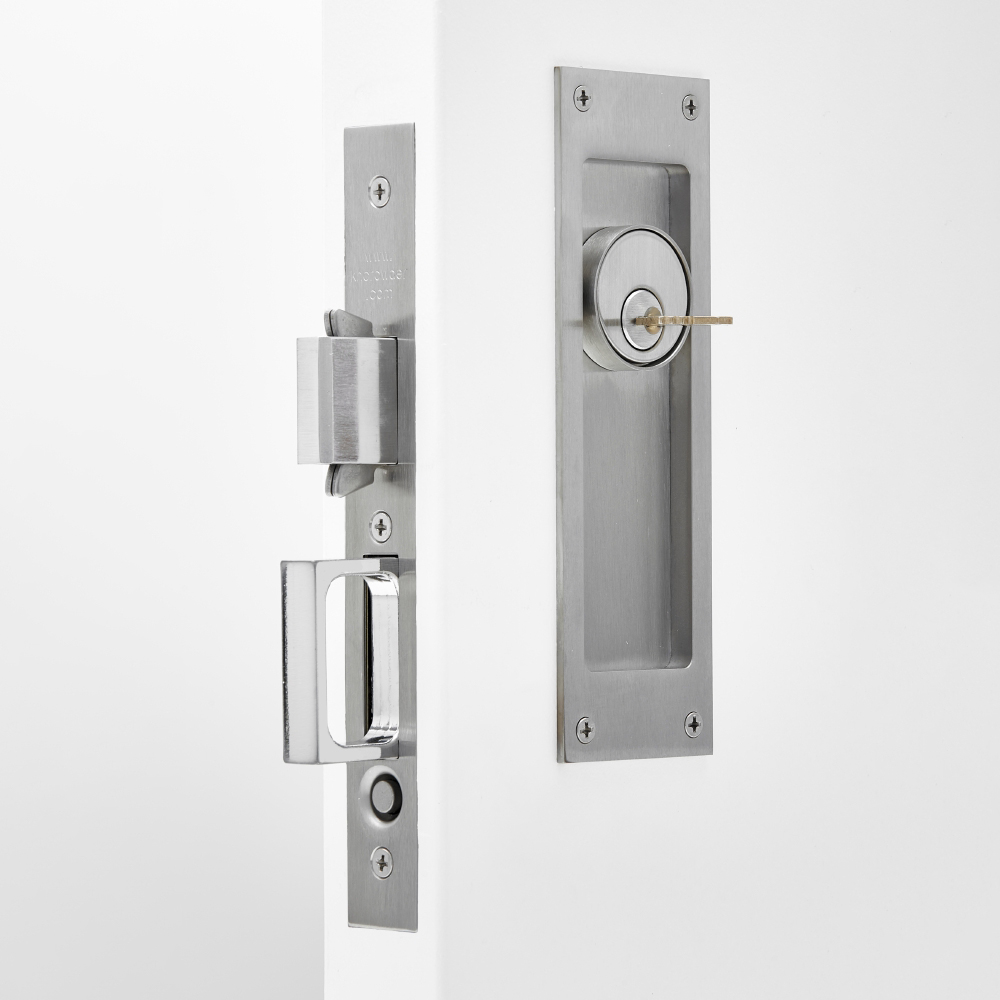

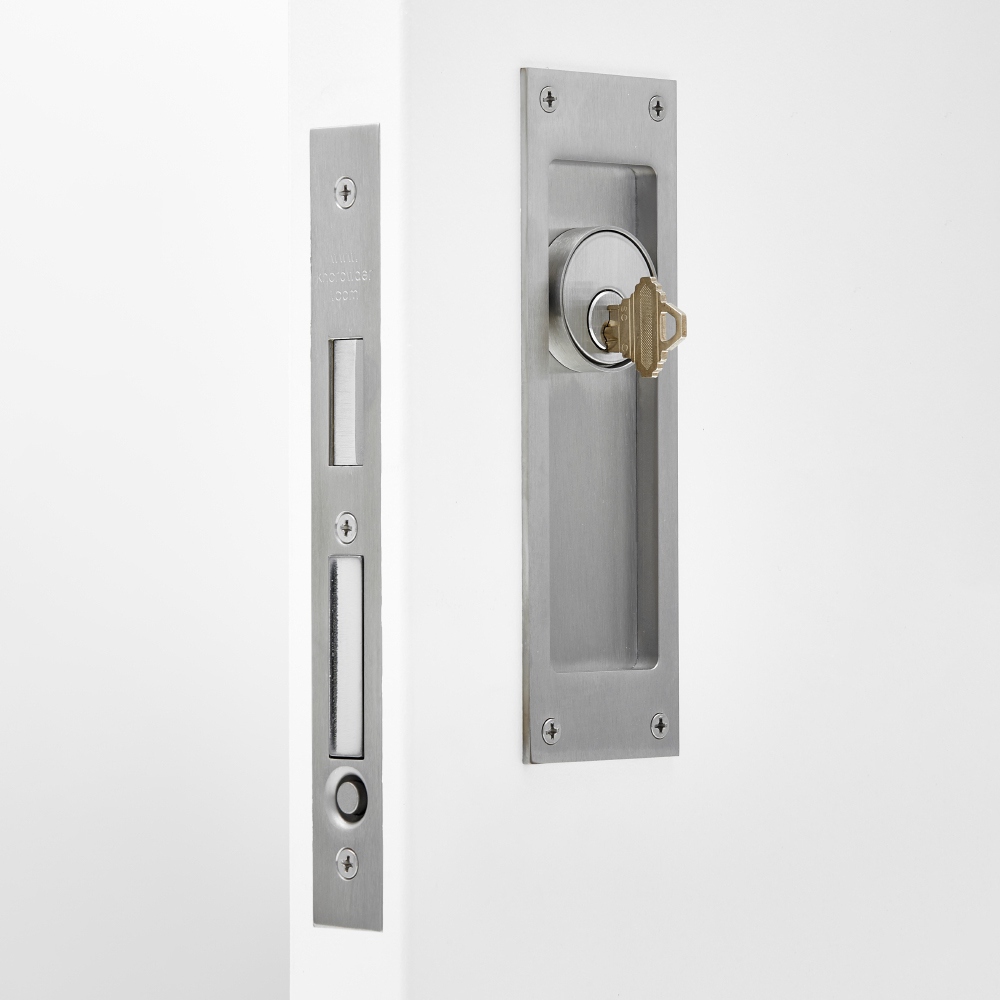

The C-90L-CT Security Lockset is a comprehensive lock, flush and edge pull system that includes a quiet, slow-release edge pull mechanism. This set includes generously sized 2 1/4 in [57.2 mm] by 7 in [177.8 mm] flush pulls, a 1 in [25.4 mm] cylinder on both sides, providing security without compromising on style or ease of use. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/4 in [44.5 mm] to 2 1/4 in [57.2 mm]

Strike Plate: 1 1/4 in [31.8 mm] x 4 7/8 in [123.8 mm]

Dustproof Box: included

Backset: standard 2 3/4 in [69.9 mm] (alternative backsets available upon request)

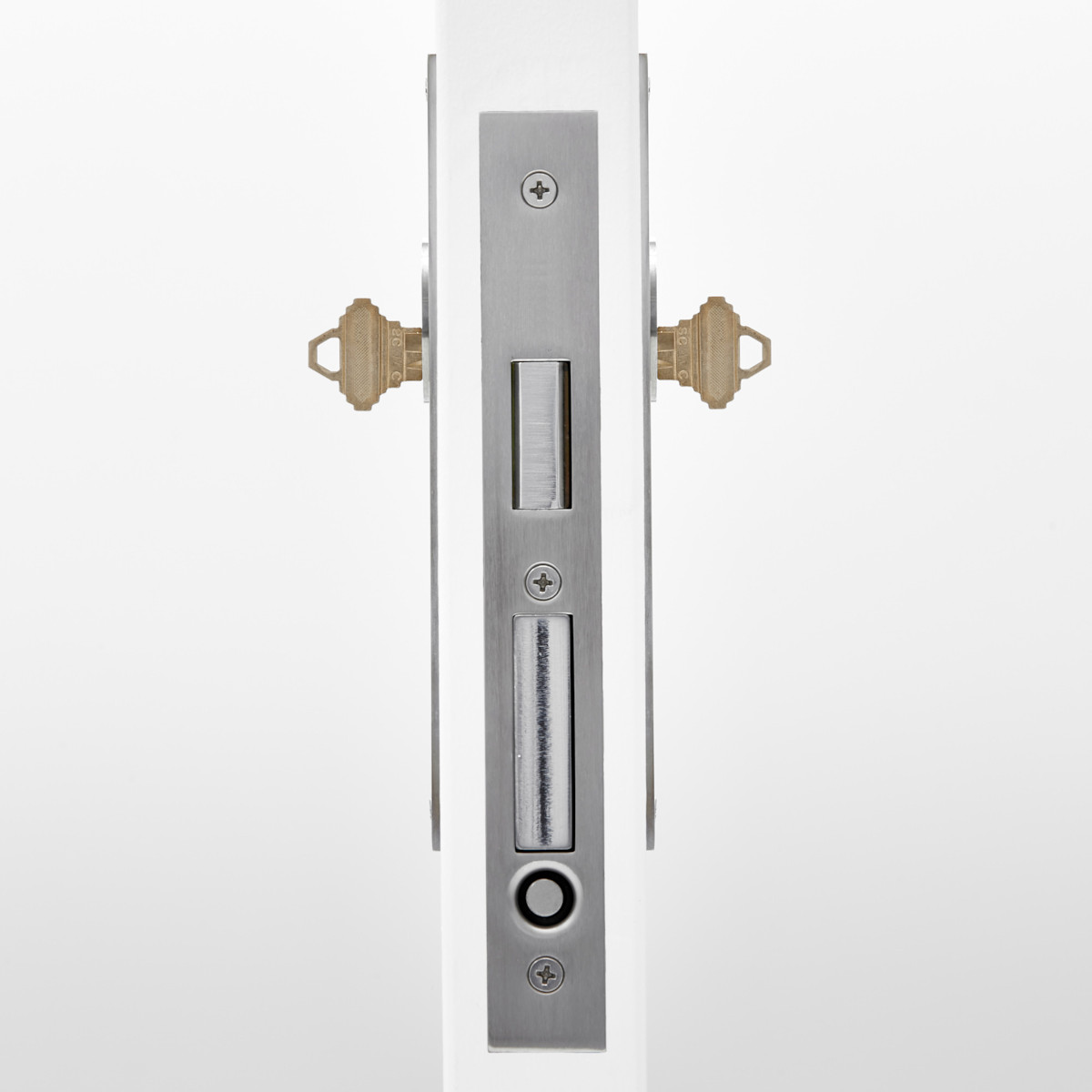

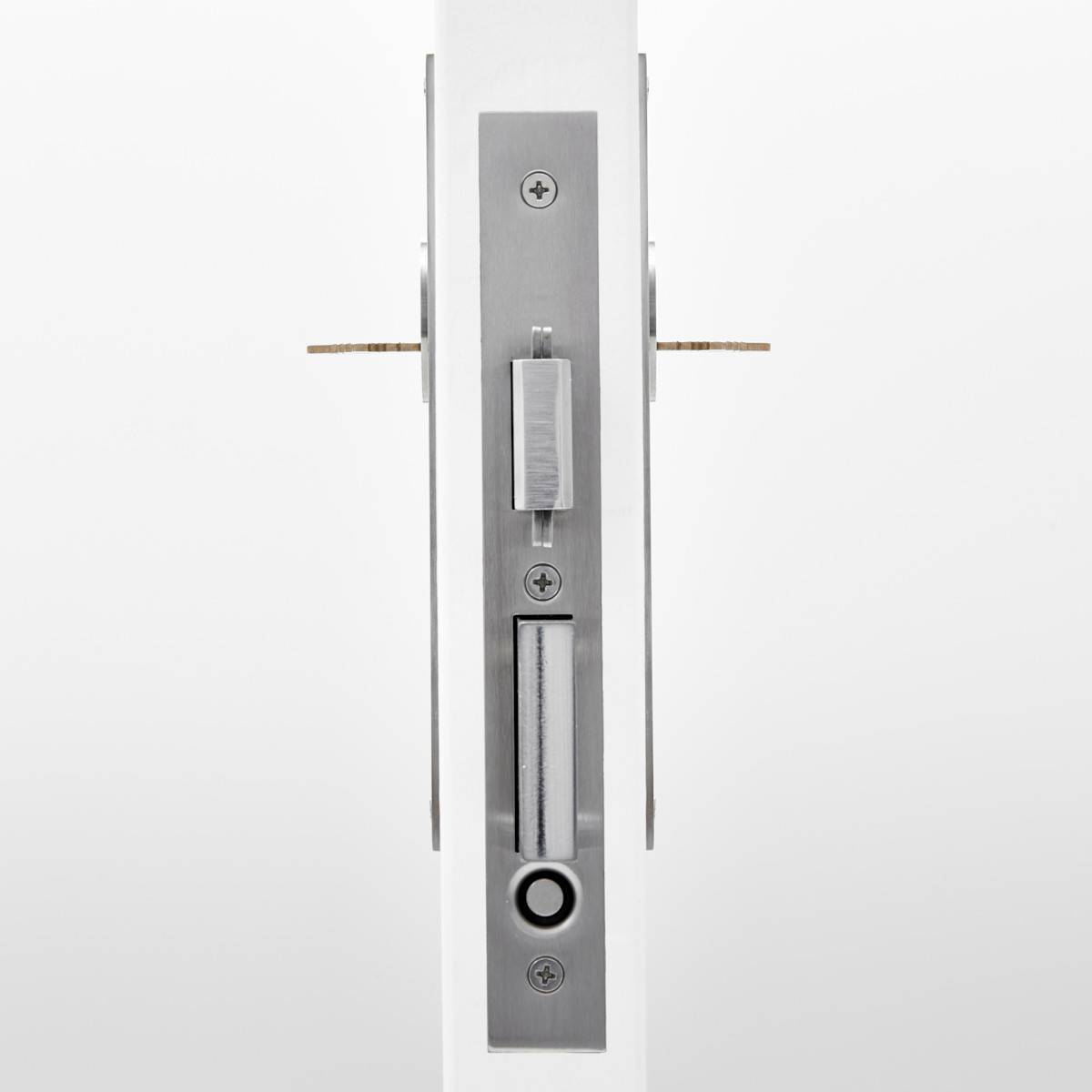

Included Components: one C-90L Lock and Edge Pull Body, two C-90C Cylinder Flush Pulls, and two Cylinders

HOW TO SPECIFY/ORDER

C-90L-CC x ( )

( ) = finish
