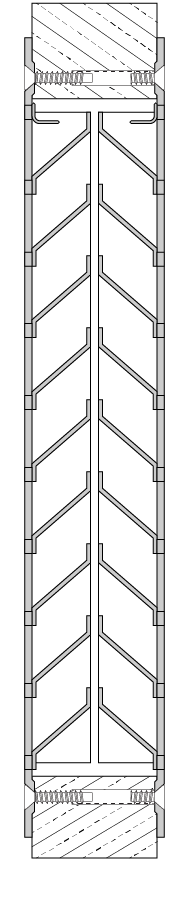

Our SDL-SG louvers are custom built to your size specifications and feature sight-proof, inverted y-blades, providing a functional and aesthetically pleasing solution for your door needs. Designed for easy installation and optimal air flow, with 40% free space, these louvers are perfect for wood, hollow metal, or plastic laminated doors. Fabricated using an 18-gauge cold rolled steel frame and blades with 12-gauge cold rolled steel security grille, ensures long-lasting performance. Security grille welded to interior and exterior of louver with 13/16 in [20.6 mm] square openings, two-piece thru-bolted door.
The SDL-SG louver is offered in a mineral bronze powder coat finish. Custom finishes, such as black or white, are also available. Other customizable options include insect and bird screens.
| STOCK SIZES (door cutout size) |
|||
| WIDTH (inches) |
X | HEIGHT (inches) |
Mineral Bronze Powder Coat |
| 18 | X | 12 | X |
| 18 | X | 18 | X |
| 24 | X | 12 | X |
| 24 | X | 24 | X |
SDL-SG (width) X (height) (FINISH)
(dimensions are door cut-out size)
