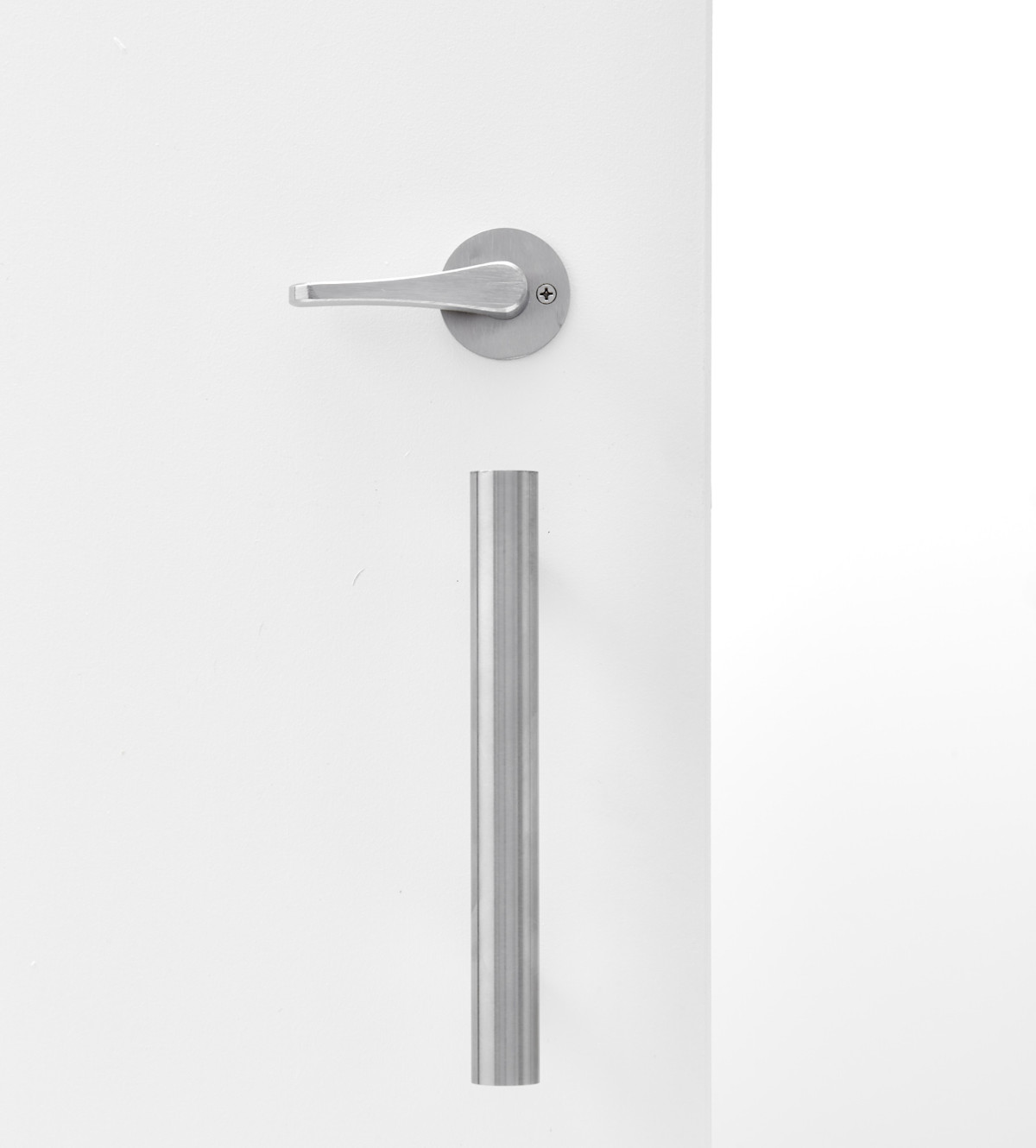

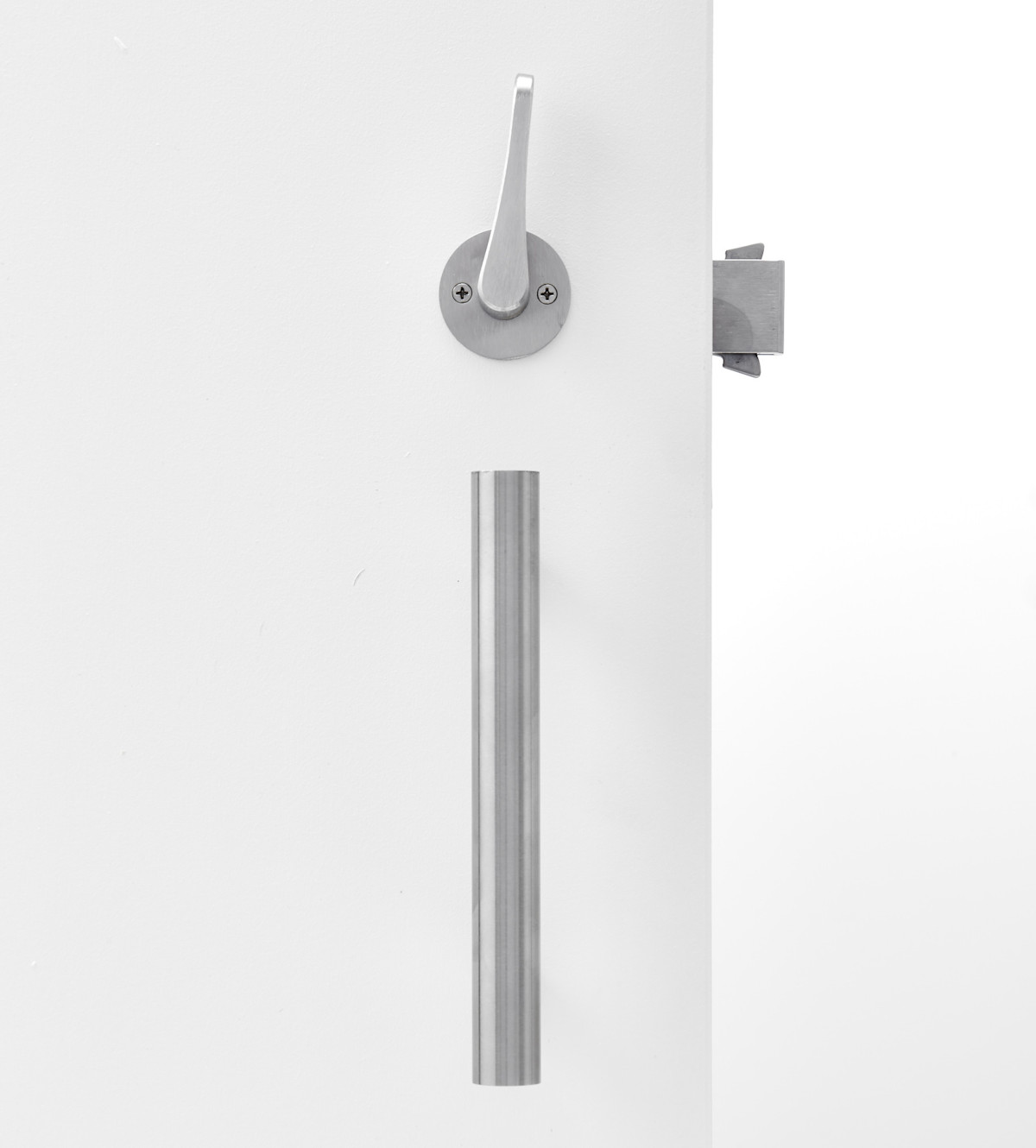

The C-92L-HLDP Privacy Lockset is a comprehensive lock, handle lever, and door pull system crafted with precision and attention to detail. This set includes modern Ø7/8 in [22.2 mm] by 7 3/4 [196.9 mm] robust door pulls, an accessible handle lever and an occupancy indicator with an emergency release function, guaranteeing convenience and peace of mind. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/4 in [44.5 mm]

Strike Plate: 1 1/4 in [31.8 mm] x  4 7/8 in [123.8 mm]

Dustproof Box: included

Backset: standard 2 3/4 in [69.9 mm] (alternative backsets available upon request)

Handing: specify left or right

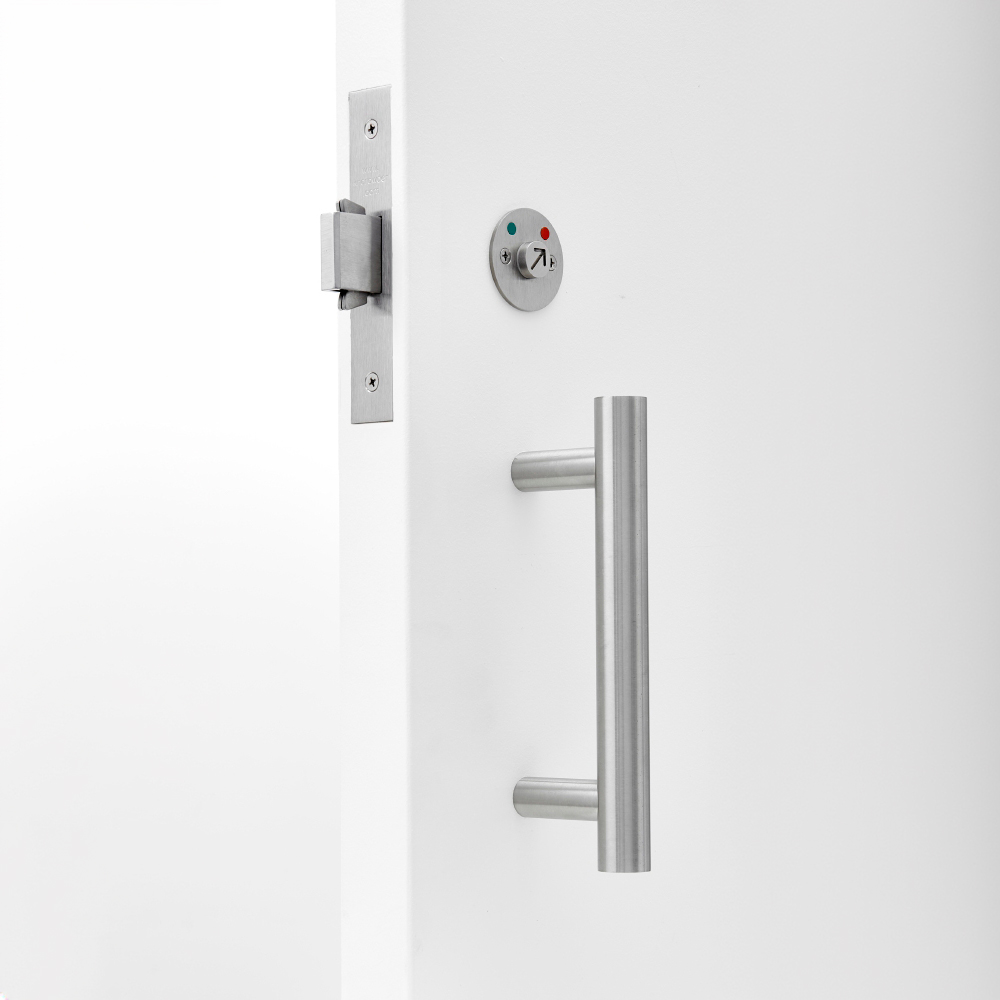

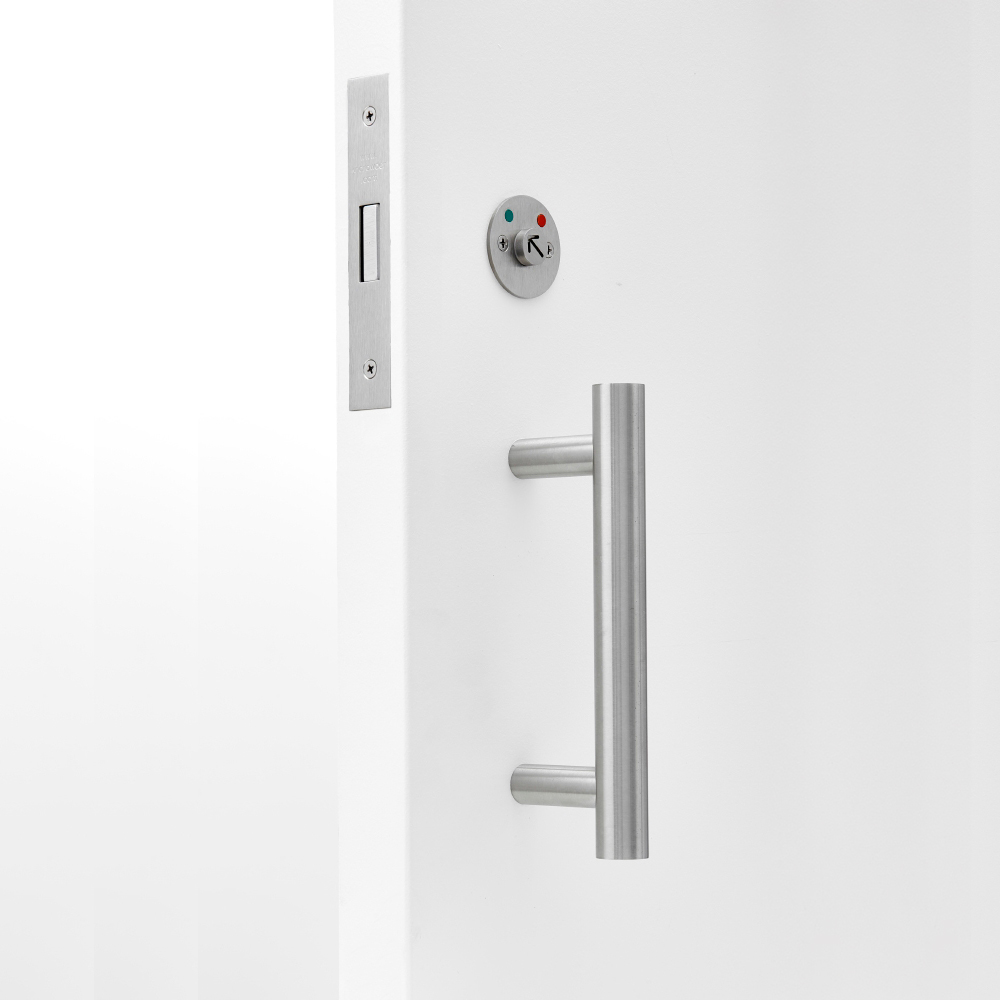

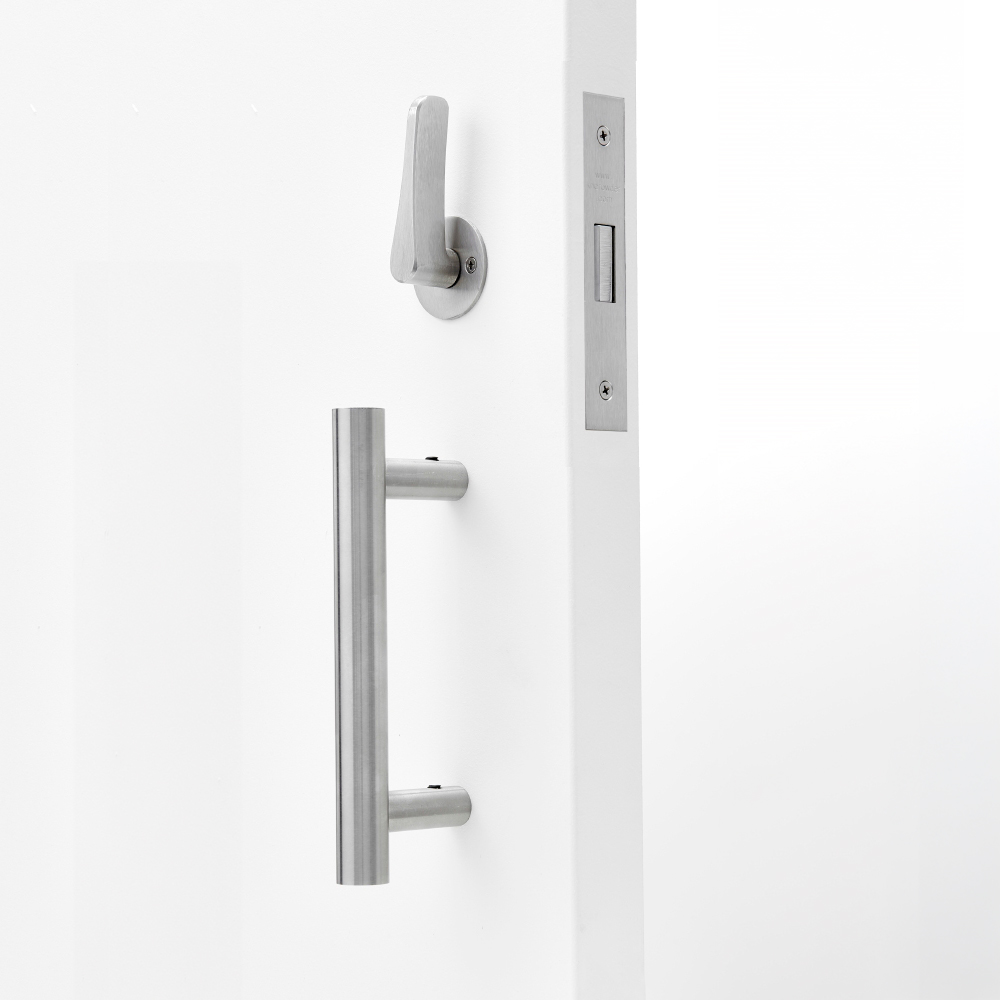

Included Components: one C-92L Lock Body, one C-90HL Handle Lever, one C-90HER Occupancy Indicator with Coin Turn Emergency Release, and one set of C-90DP Back-to-Back Door Pulls

HOW TO SPECIFY/ORDER

C-92L-HLDP x ( ) LH
Left-Handed

C-92L-HLDP x ( ) RH
Right-Handed

( ) = finish
