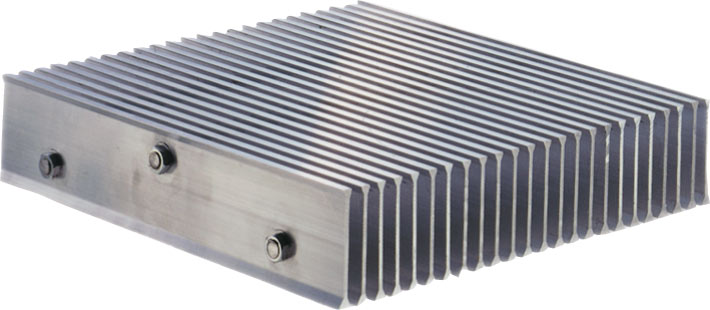

FG-2HD Aluminum Foot Grilles

Frame only

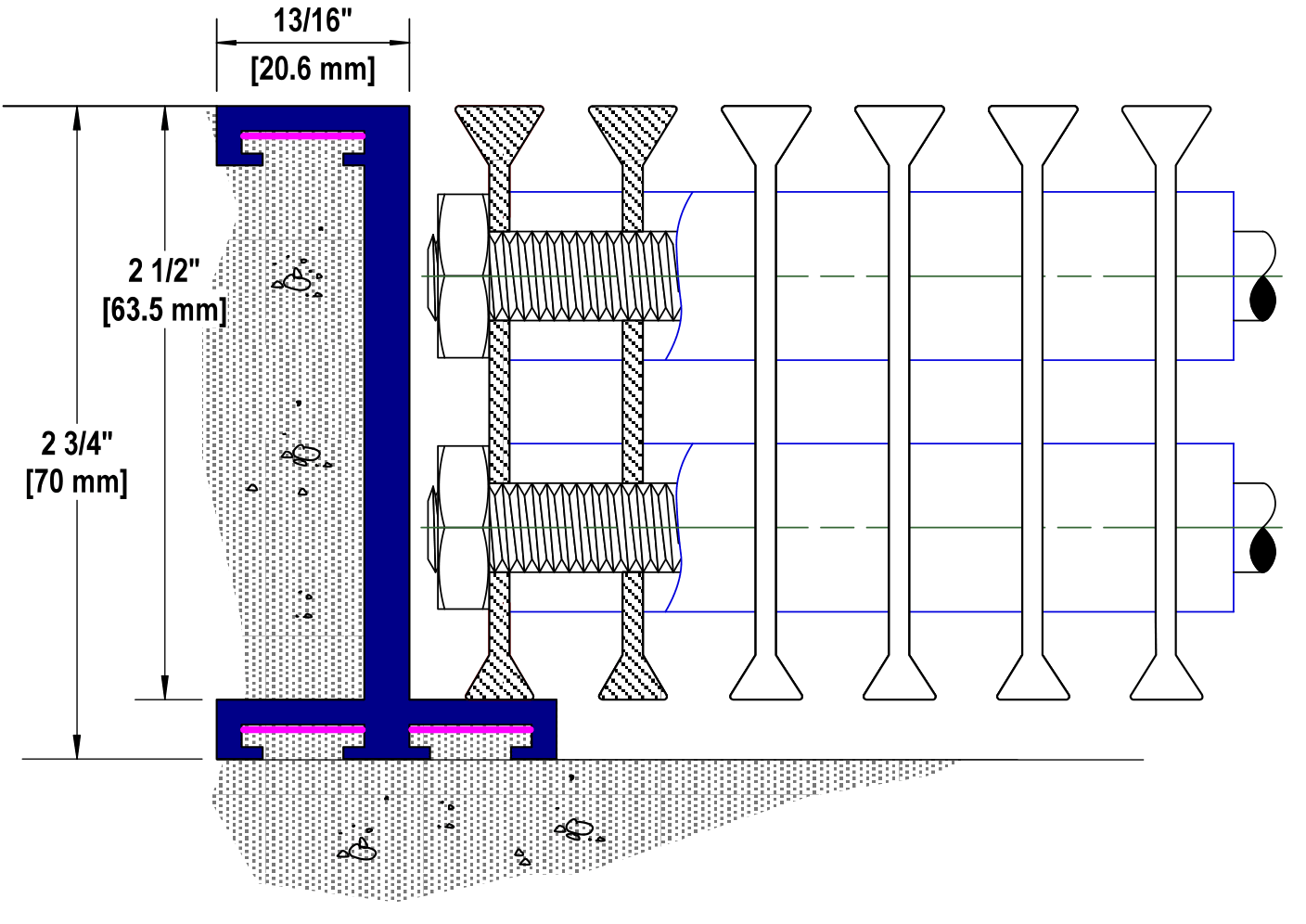

Type HD Frame

The 13/16 in wide profile of the HD frame provides the finishing touch for our Heavy duty foot grille, with a solid assembly that can withstand excessive weightloads such as cars and forklifts.

Aluminum alloy 6063-T5
Assembly required
Hardware included

FG-2HD-Standard
DOWNLOADS

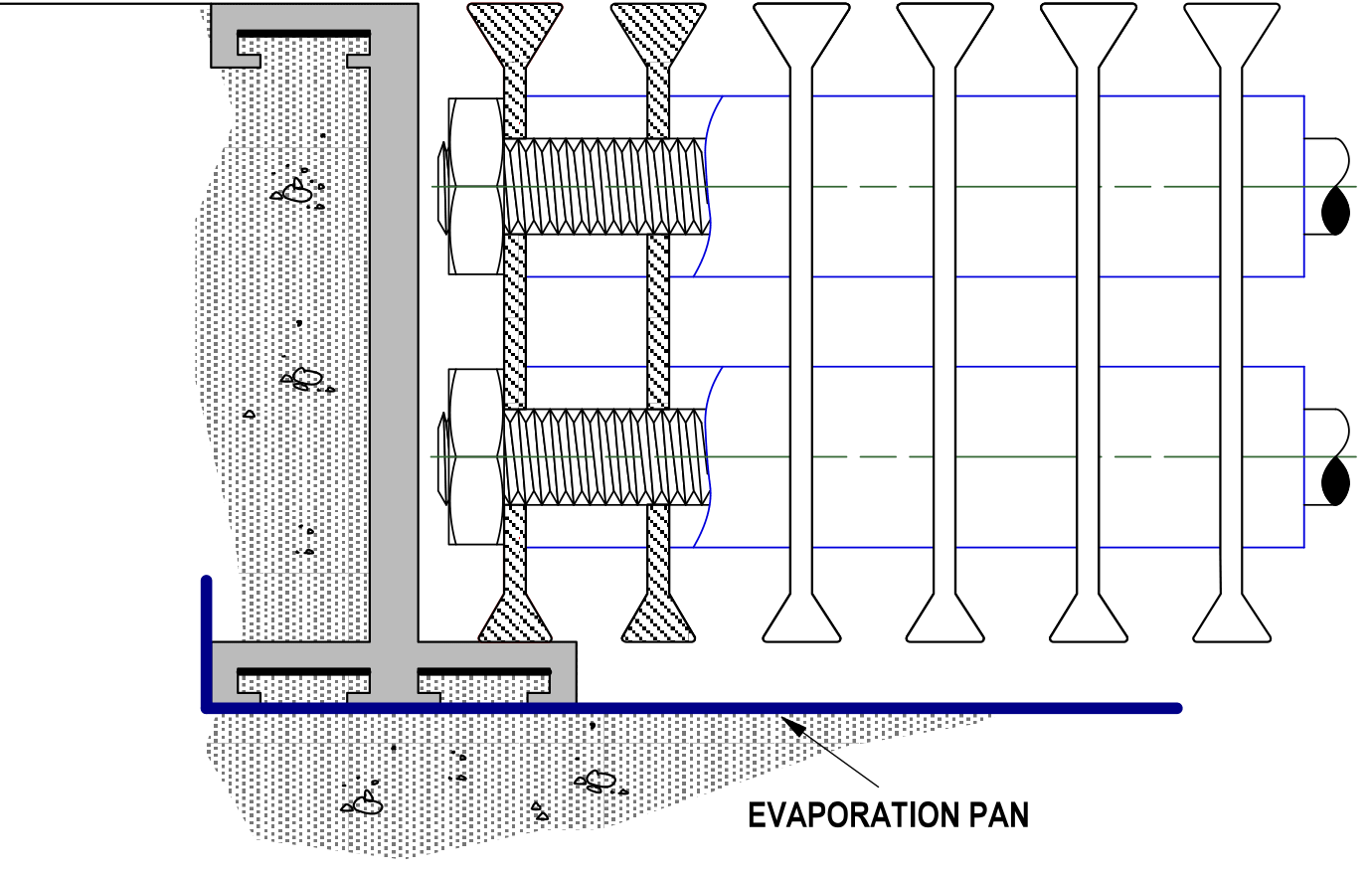

Frame with evaporation pan

All pans have a 1/2 in [12.7 mm] raised edge at the perimeter to fit around the bottom of the frame.

Available in:
20 ga. galvanized steel
16 ga. aluminum
20 ga. stainless steel

catchNclose image
DOWNLOADS

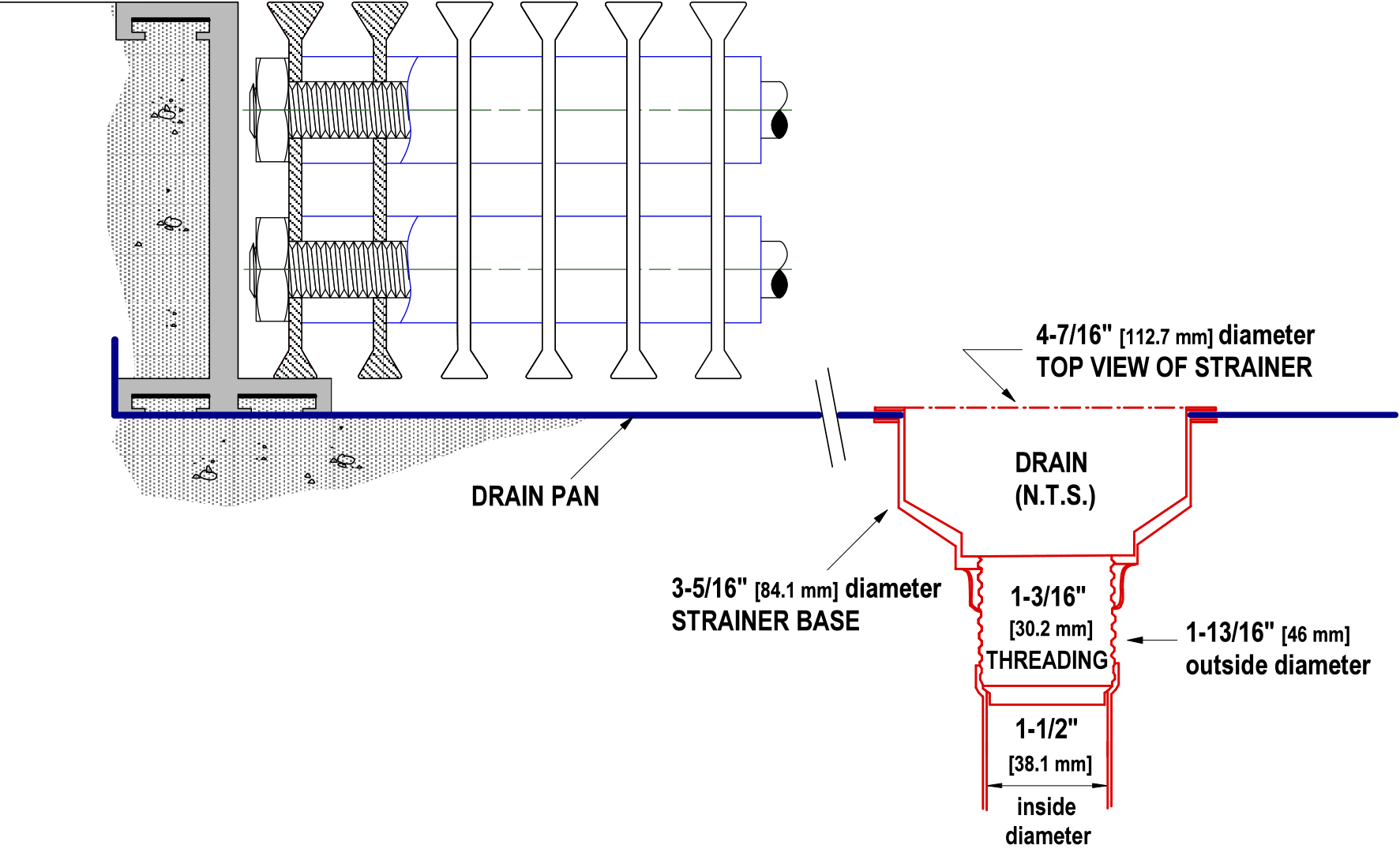

Frame with drain pan

Drain pans come complete with a stainless steel strainer and 3 5/8 in [92.1 mm] diameter cutout.

The pan is formed with a 1/2 in [12.7 mm] raised edge at the perimeter, to fit around the bottom of the frame.

Available in:
20 ga. galvanized steel
16 ga. aluminum
20 ga. stainless steel

catchNclose image
DOWNLOADS
