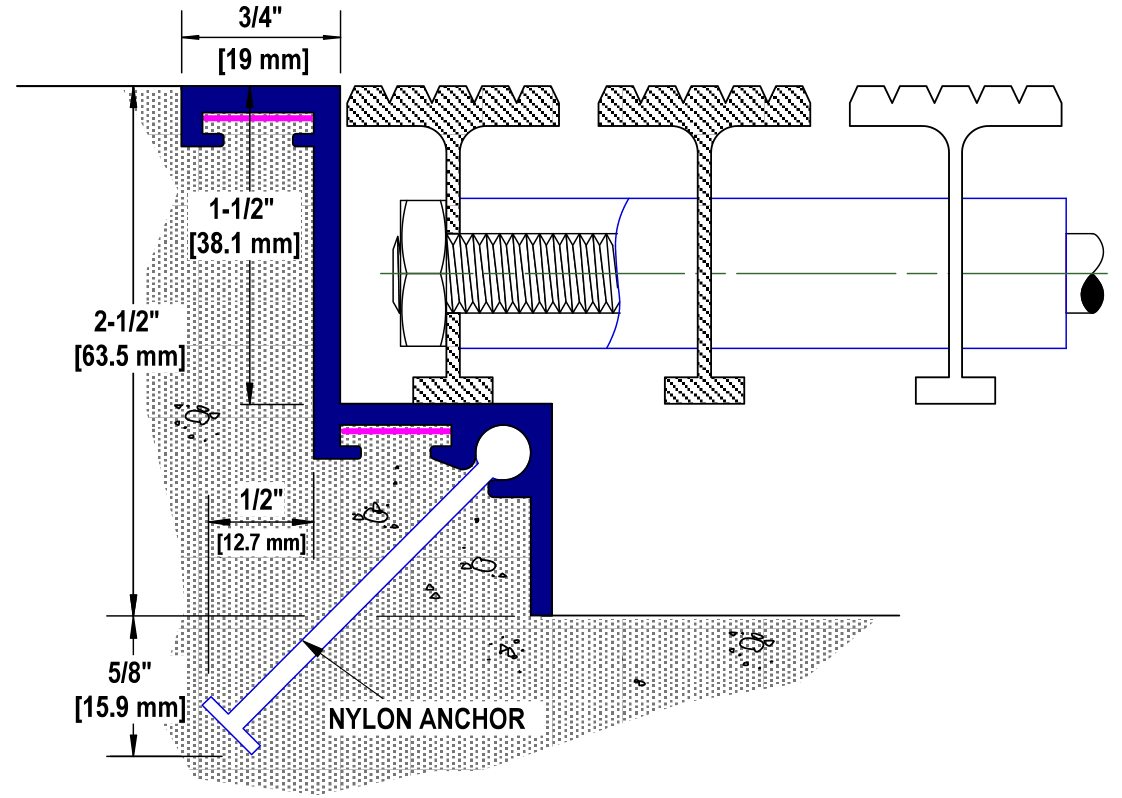

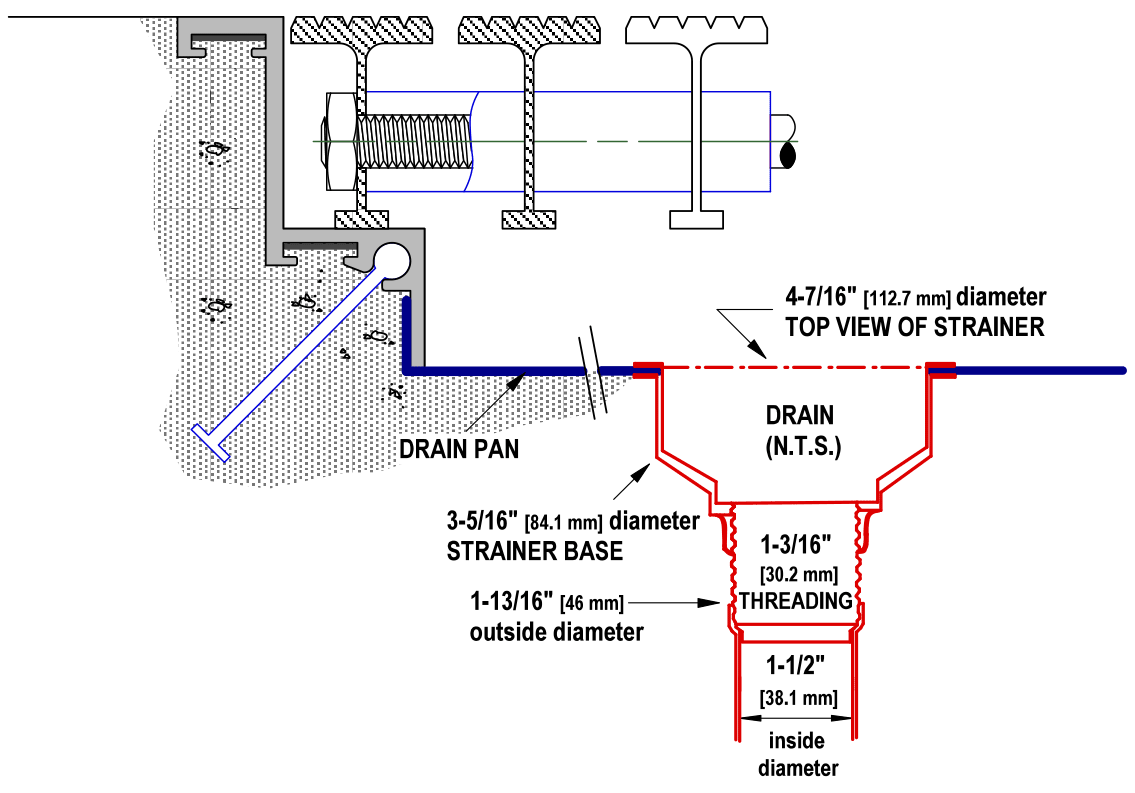

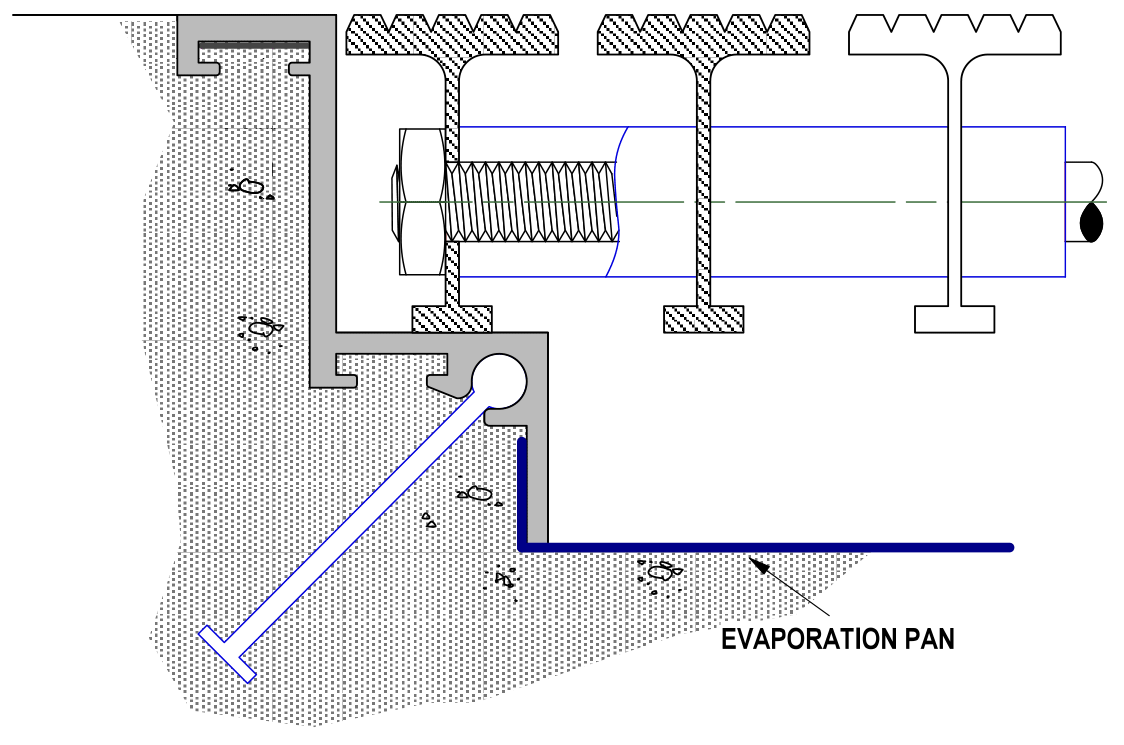

The 3/4 in [19 mm] profile of the GA frame provides a picture-perfect border for any of our foot grilles.
The nylon anchors ensure a secure installation in the concrete and the deep frame provides 1 in [25.4 mm] of additional depth, under the grille, to collect even more dirt and debris.
Aluminum alloy 6063-T5
Assembly required
Hardware included

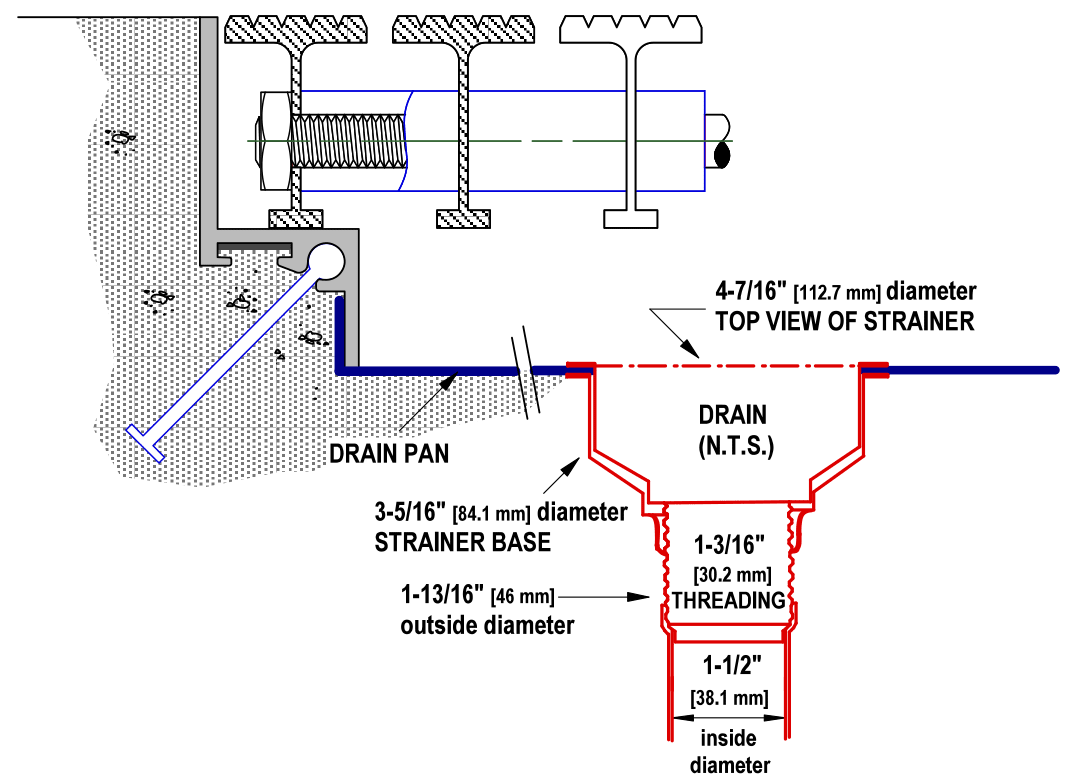

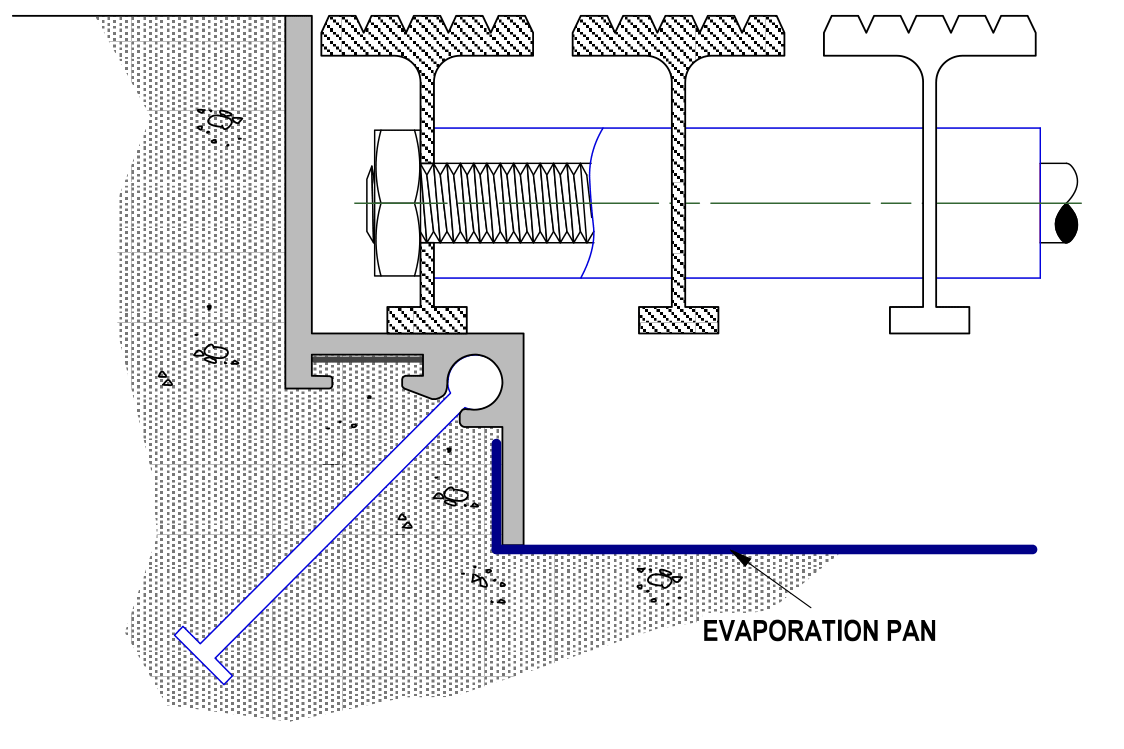

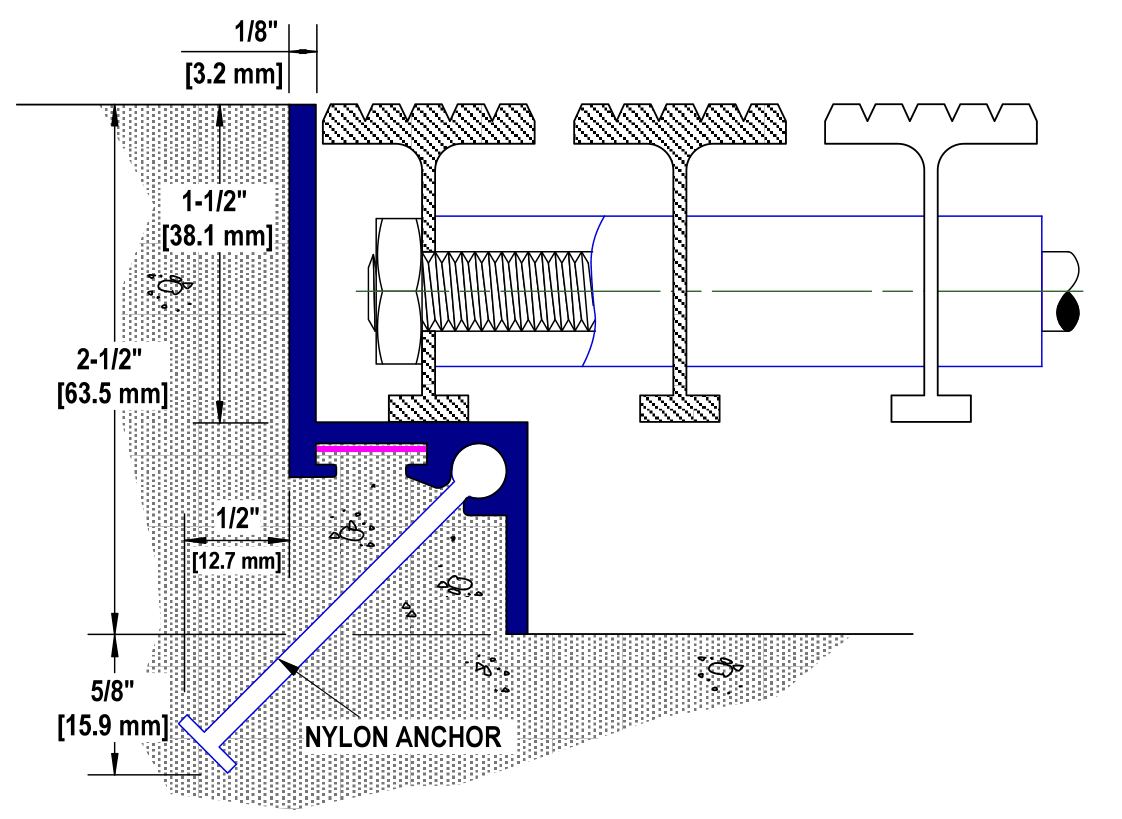

The thin 1/8 in [3.2 mm] profile of the GB frame provides a minimal border creating an almost seamless transition between the foot grille and the finished flooring.
The nylon anchors ensure a secure installation in the concrete and the deep frame provides 1 in [25.4 mm] of additional depth, under the grille, to collect even more dirt and debris.
Aluminum alloy 6063-T5
Assembly required
Hardware included

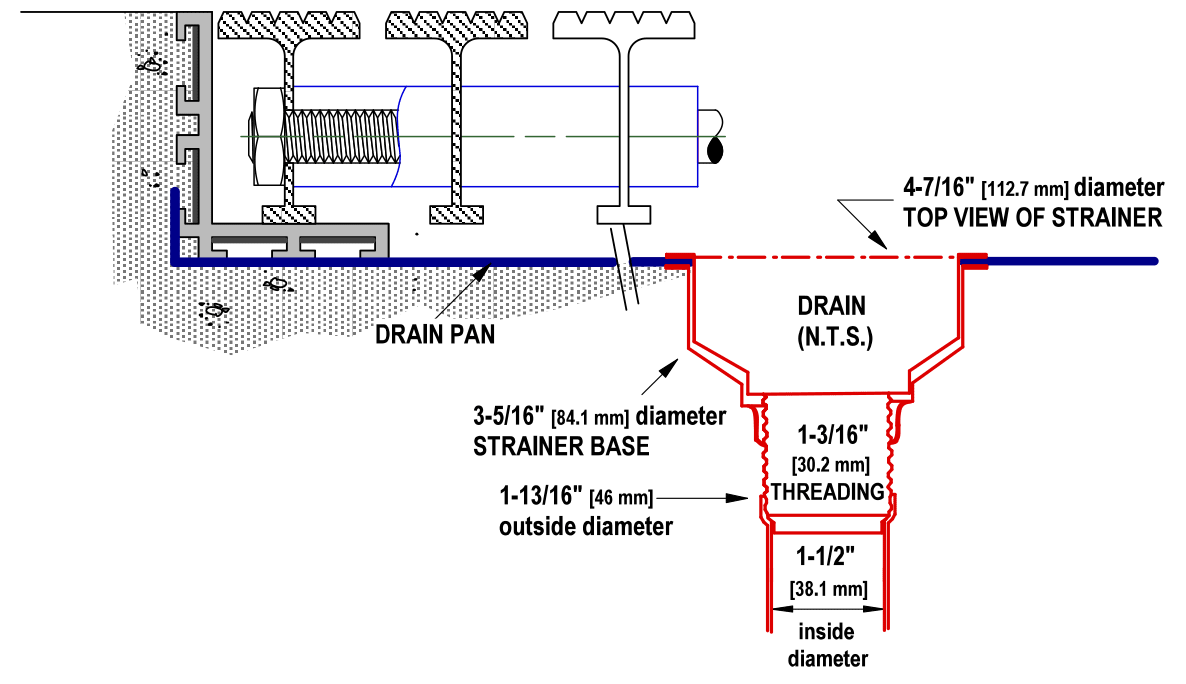

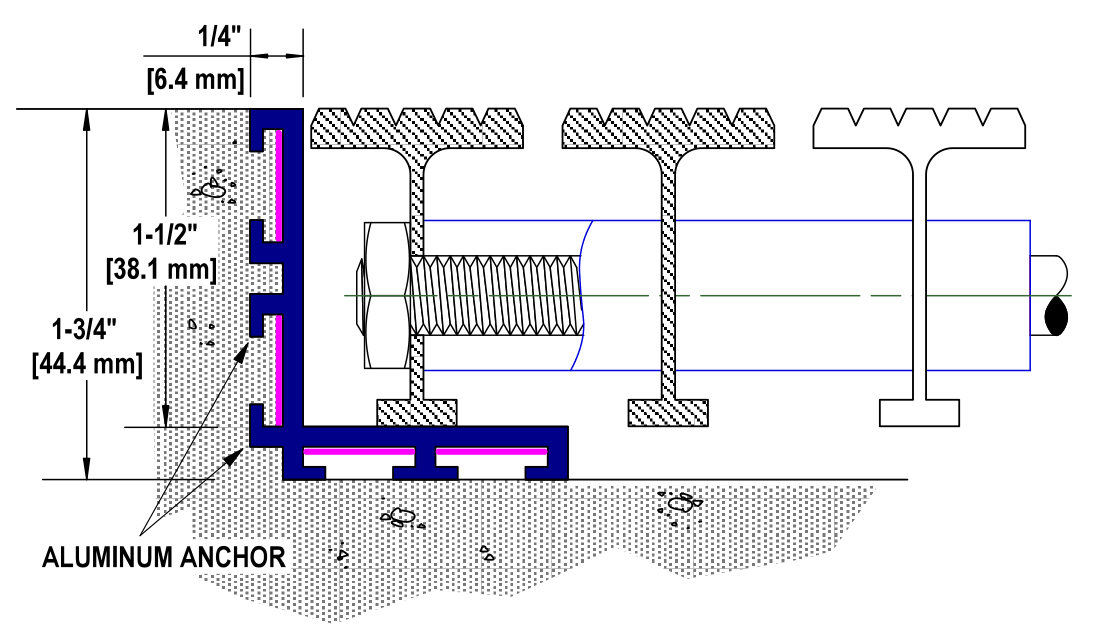

The 1/4 in [6.4 mm] angle frame is the perfect solution for any retrofit application, where depth is limited.
This frame comes complete with extruded aluminum anchors, making it easier for concrete to adhere to, when set into the recessed opening.
Aluminum alloy 6063-T5
Assembly required
Hardware included
