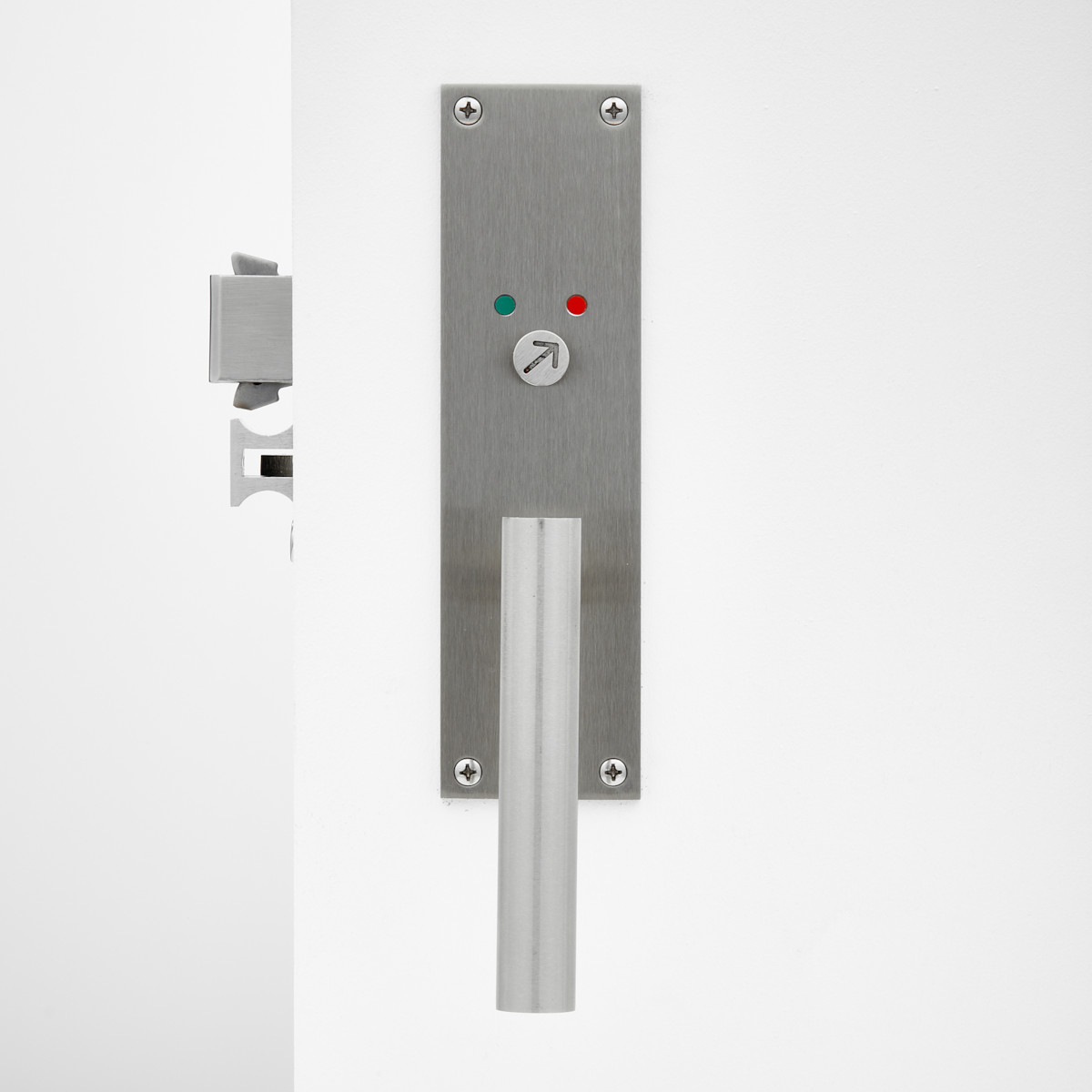

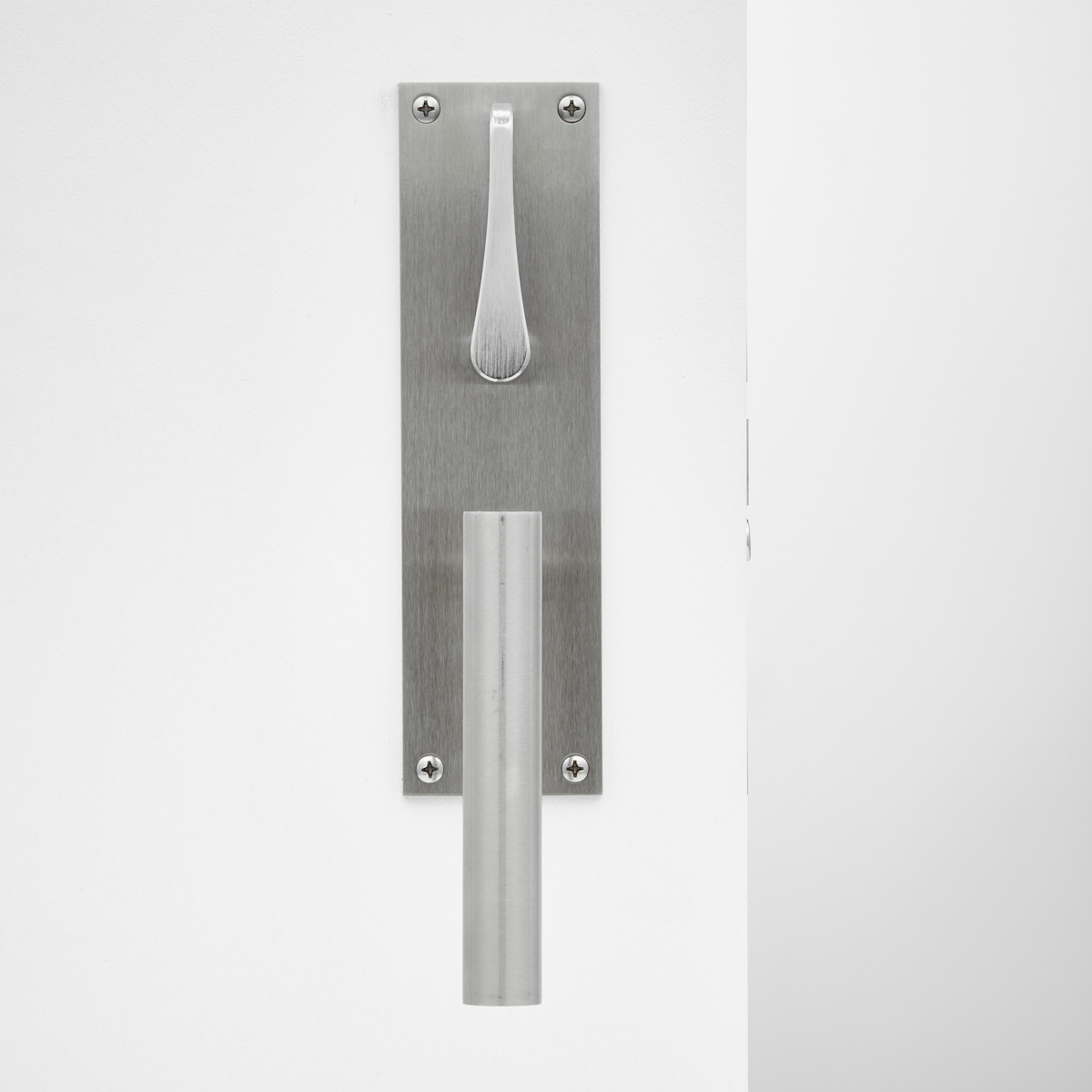

The C-95SL-OIHL Privacy Lockset is a barrier-free (ADA compliant) self-latching system that offers added flexibility by allowing the incorporation of a deadbolt for enhanced security. This set includes contemporary Ø7/8 in [22.2 mm] by 5 3/8 in [136.5 mm] handle levers on generously sized 2 1/4 in [57.2 mm] by 8 in [203.8 mm] trims - one with an ADA lever and the other with an emergency release occupancy indicator, providing an additional safety layer for quick and easy unlocking from the outside. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/4 in [44.5 mm]

Strike Plate: 1 1/4 in [31.8 mm] x 4 7/8 in [123.8 mm]

Dustproof Box: included

Backset: standard 2 3/4 in [69.9 mm] backset (alternative backsets available upon request)

Handing: specify left or right

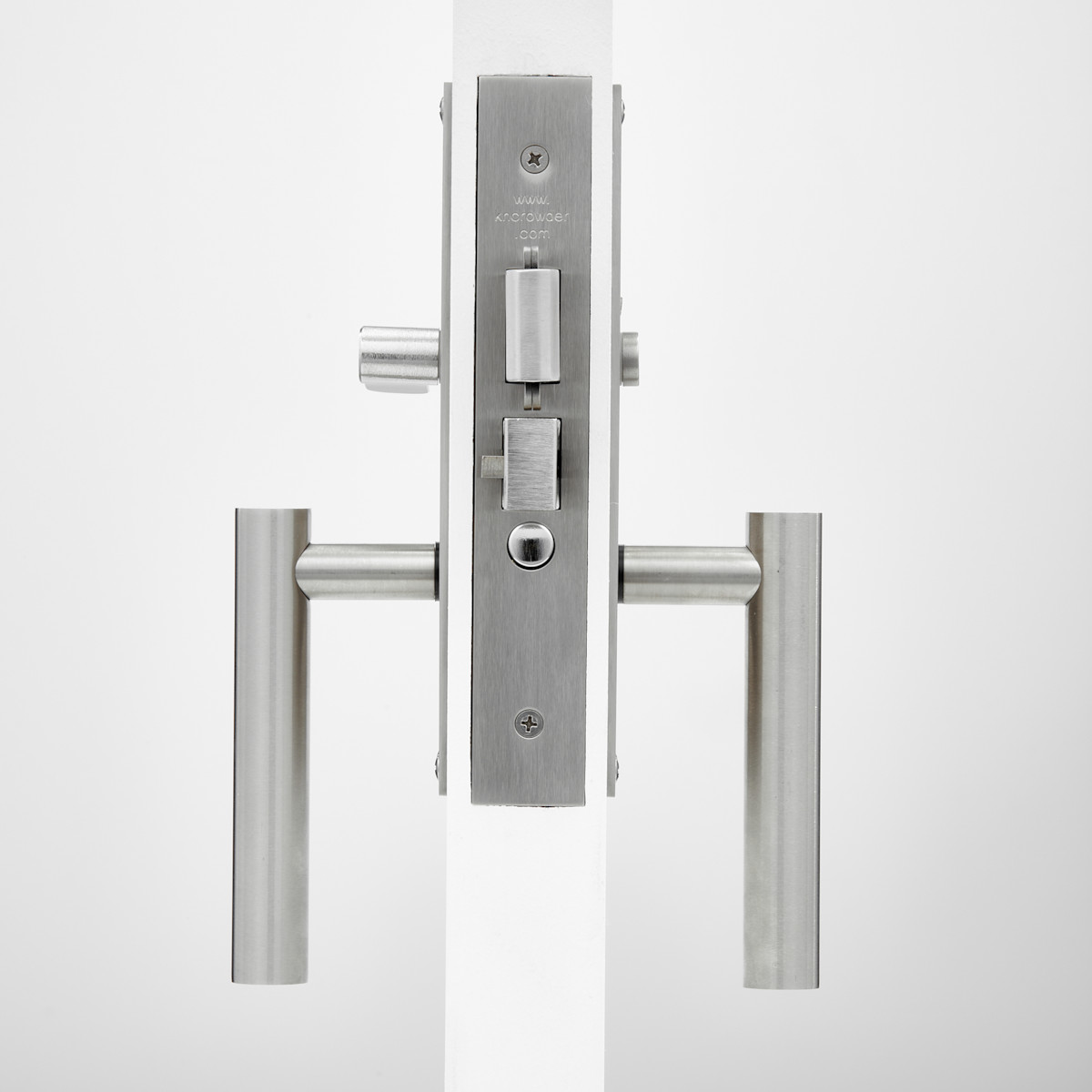

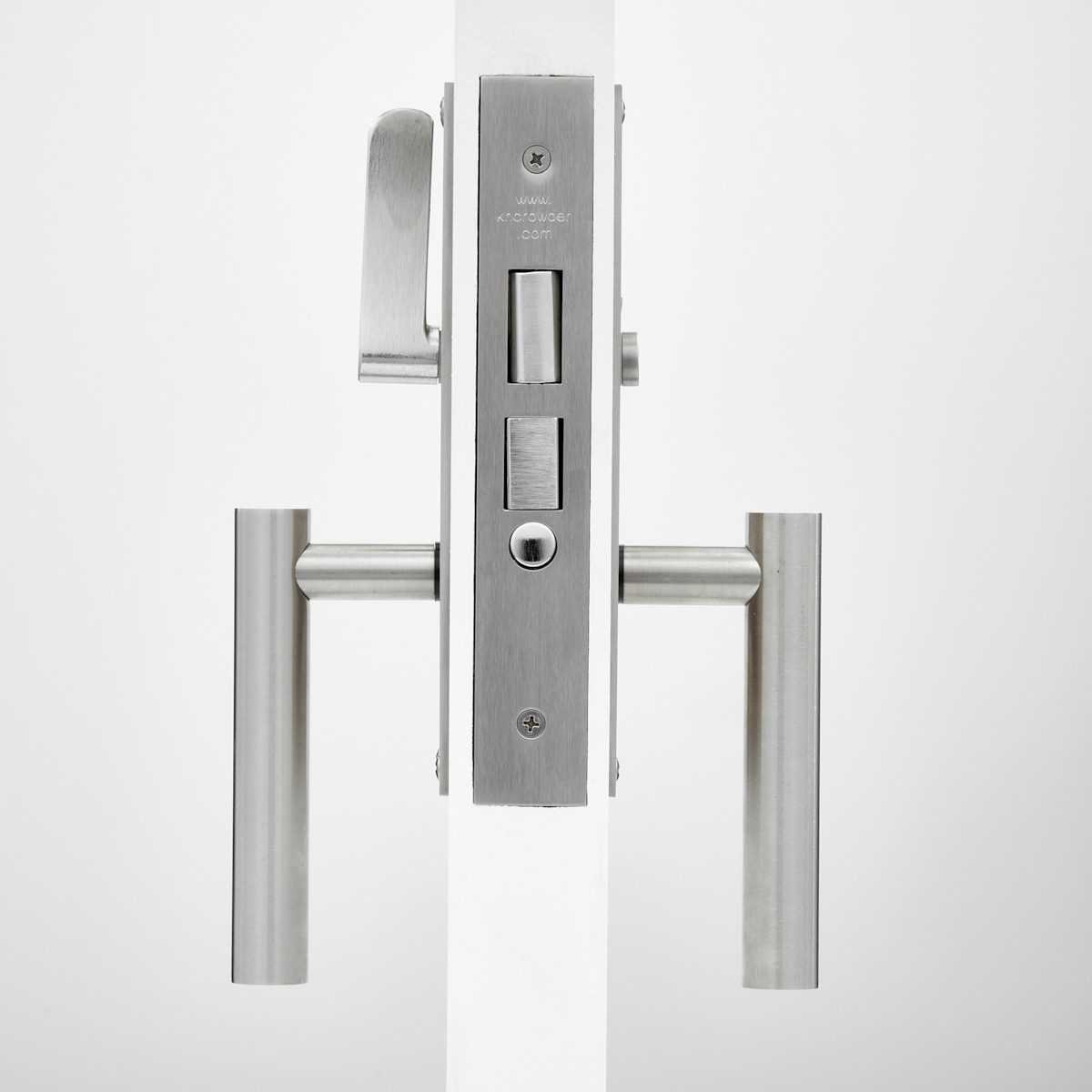

Included Components: one C-95PSL Privacy Self-Latching Lock and Edge Pull Body, one C-95OIL Occupancy Indicator with Coin Turn Emergency Release Self-Latching Lever Trim, and one C-95TL ADA Turn Self-Latching Lever Trim

HOW TO SPECIFY/ORDER

C-95SL-OIHL x ( ) LH
Left-Handed

C-95SL-OIHL x ( ) RH
Right-Handed

( ) = finish
