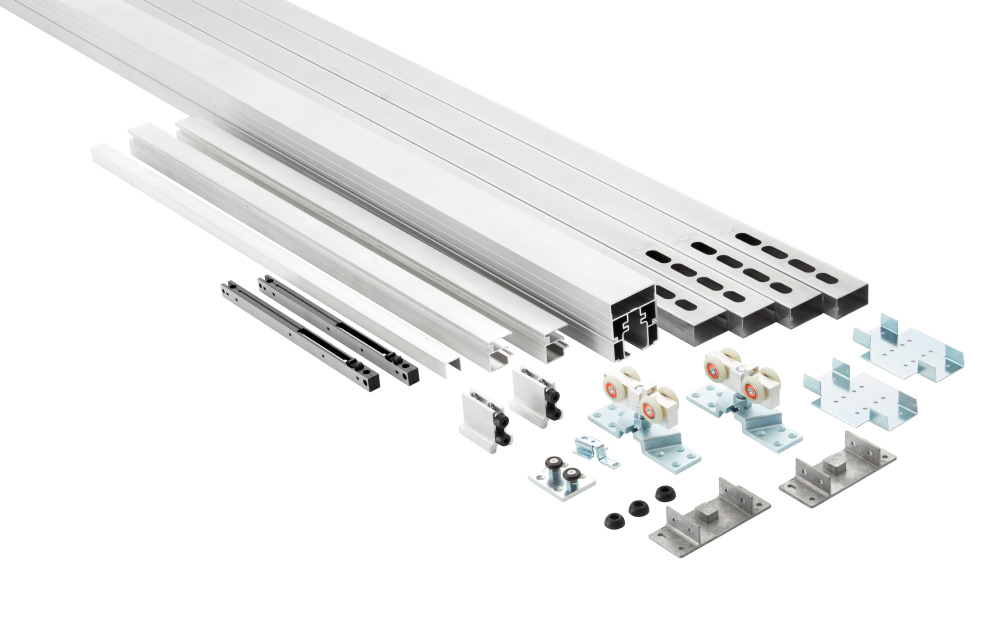

Our best-selling Crowder Frame Pocket Door Kit now comes in a heavy-duty version specifically engineered for 2X6 wall construction!

This complete kit eliminates the need for shim kits, making installation fast and easy. As always, our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch ‘N’ Close closing system enables the door to glide into position without any assistance.

  • Complete with larger, heavy-duty roll formed steel uprights for less deflection and easy to screw into for drywall fastening
  • The NEW CC-998 Easy Connect Top Mount Hangers allow you the choice to install the door before OR after the drywall goes up. They also allow for height and plumb adjustments while the door is up
  • New Catch ‘N’ Close slot makes installation or replacement of Catch ‘N’ Close devices simple. No removing trim, the door, or cutting into the drywall required
  • Faster and easier installation than a traditional pocket built on-site
  • For single or bi-parting door application
icon

Barrier-Free (ADA Compliant)

CATCH ‘N’ CLOSE

Using gas spring technology, we created a system that allows sliding doors to close and stay closed. The door will automatically slow and close itself the final few inches without user assistance. This design has the unique ability to safeguard the door and hardware from wear and tear.

video GIF

Easy Connect Hangers

Our Easy Connect Hangers were engineered to simplify the installation process. The top plate features a cut-out that accepts the Easy Connect bolt, reducing your installation time.

product image

SUPERIOR DESIGN & COMPONENTS

KN Crowder is committed to innovation and quality engineered, durable, time-tested door hardware. Our engineering experts provide solutions to your specific hardware needs. Our raw materials are of the highest quality and North American sourced, with all manufacturing done in Canada. With over 150, 000 cycle tests or the equivalent of 30 years of normal use, our hangers stand strong without experiencing any measurable wear or increase in noise.

HOW TO SPECIFY/ORDER

TYPE CC-2HD-2X6
For maximum door weight of 200 lbs. [91 kg]

TYPE CC-3HD-2X6
For maximum door weight of 300 lbs. [136 kg]

For doors from 30 in [762 mm] to 72 in [1828 mm] wide x 78 in [1981 mm] to 120 in [3048 mm] high, please provide door size when specifying/ordering

For doors less than 29 in [736 mm] wide, please refer to Type CC-NR-2X6

For bi-parting doors, use two single door kits and specify one CPD-2X6-Joiner Kit
