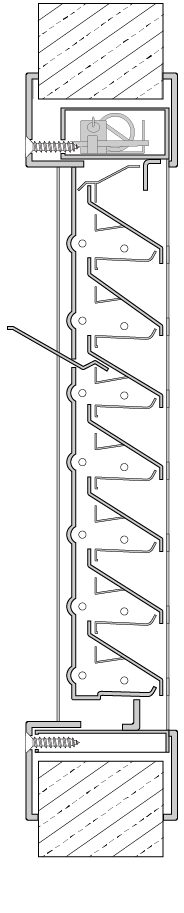

The SDL-FP is a fire-rated steel door louver designed for hollow metal and composite fire doors with ratings up to 1 1/2 hours. Constructed with an 18-gauge cold rolled steel frame and 16-gauge adjustable sight-proof Z-blades, the SDL-FP provides 45% free area for airflow while maintaining privacy. The self-attaching frame features a 1 1/4 in [31.7 mm] trim with mitered, welded corners, and screws fasten through the frame into the door core, leaving the corridor side free of exposed fasteners. A fusible link activates at 165°F, closing and locking all blades to help contain smoke and heat.
The SDL-FP is stocked in the sizes and finishes shown in the chart below. Custom finishes, non-standard sizes, and optional features such as screens and zinc plating are also available. For complete specifications, please see the cut sheet.
| STOCK SIZES (door cutout size) |
||||||
| WIDTH (inches) |
X | HEIGHT (inches) |
Mineral Bronze Powder Coat | Gray (-GR) |
White (-WH) |
Black (-BP) |
| 12 | X | 12 | X | - | - | - |
| 18 | X | 12 | X | X | X | X |
| 18 | X | 18 | X | - | - | - |
| 20 | X | 12 | X | - | - | - |
| 24 | X | 12 | X | - | - | - |
| 24 | X | 18 | X | - | - | - |
| 24 | X | 24 | X | X | X | X |
SDL-FP (width) X (height) (FINISH)
(dimensions are door cut-out size)
