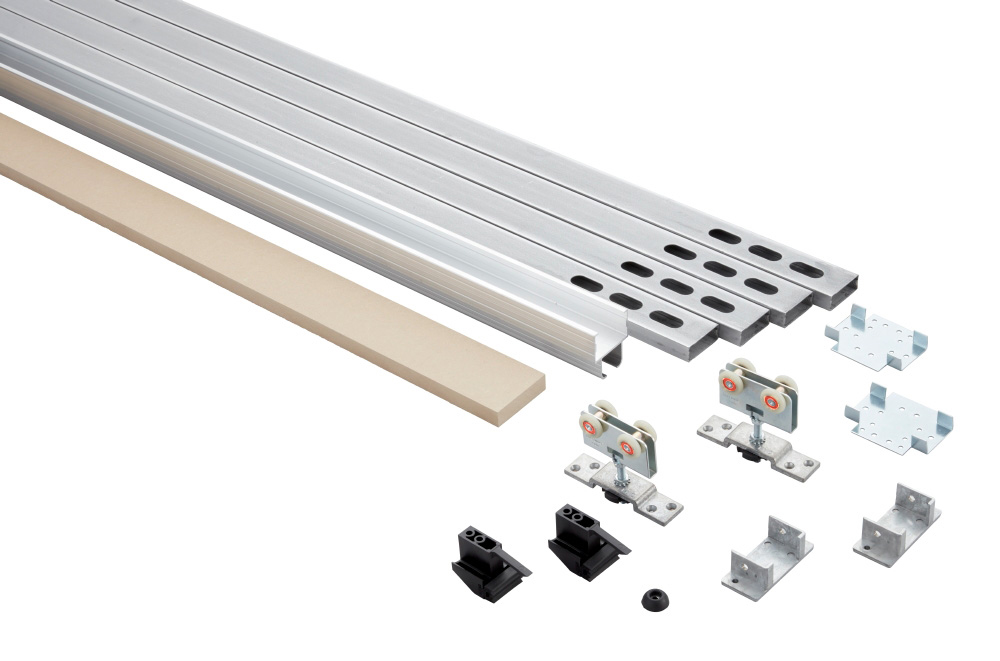

For a quick and easy install, we chose our C-411 Quick Release Hangers for these pocket door kits. Check out the drawings above to see how easily the door connects and adjusts! Our nylon wheels with precision ball bearings ensure smooth and quiet door operation.

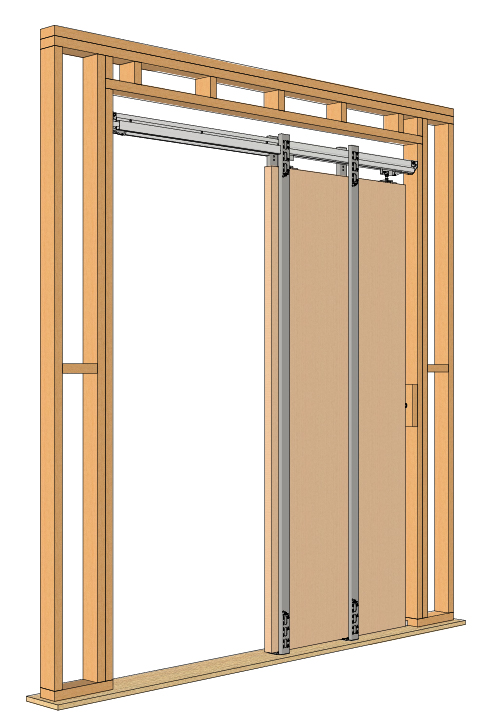

  • Complete with roll-formed steel uprights for less deflection and easy to screw into for drywall fastening
  • Choose to install the door before OR after the drywall goes up
  • Adjust door height and plumb while the door is up
  • Faster and easier installation than a traditional pocket built on-site
  • For single or bi-parting door applications
  • For 2X4 wood wall construction or 3 5/8" metal stud wall construction
  • For 2X6 wood wall construction, please refer to Type C-2X6
  • For 6" metal stud wall construction, please refer to Type C-6MS
  • For doors up to 48 in [1219 mm] wide x 96 in [2438 mm] high x 1 3/4 in [44.5 mm] thick & up to 150 lbs. [68 kg]
HOW TO SPECIFY/ORDER

TYPE C-W
with C-914/CP-913 Guide System
Recommended for 1 3/4 in [44.5 mm] doors

TYPE C-B
with C-201/CP-200 Guide System
Recommended for 1 3/8 in [34.9 mm] doors

TYPE C
with Nylon Guides

For doors from 18 in [457 mm] to 48 in [1219 mm] wide x 80 in [2032 mm] to 96 in [2438 mm] high, please provide door size when specifying/ordering

For bi-parting doors, use two single door kits and specify one CPD-2X4-Joiner Kit

Guide Systems
product image
(W) C-914/CP-913
Details
product image
(B) C-201/CP-200
Details
product image
NYLON GUIDES
Details
