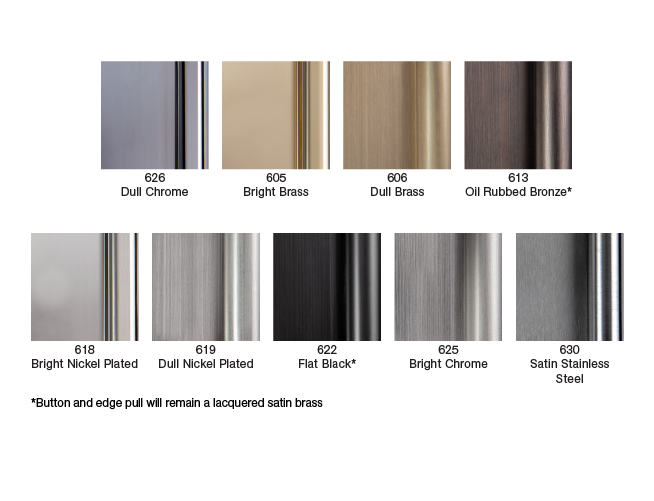

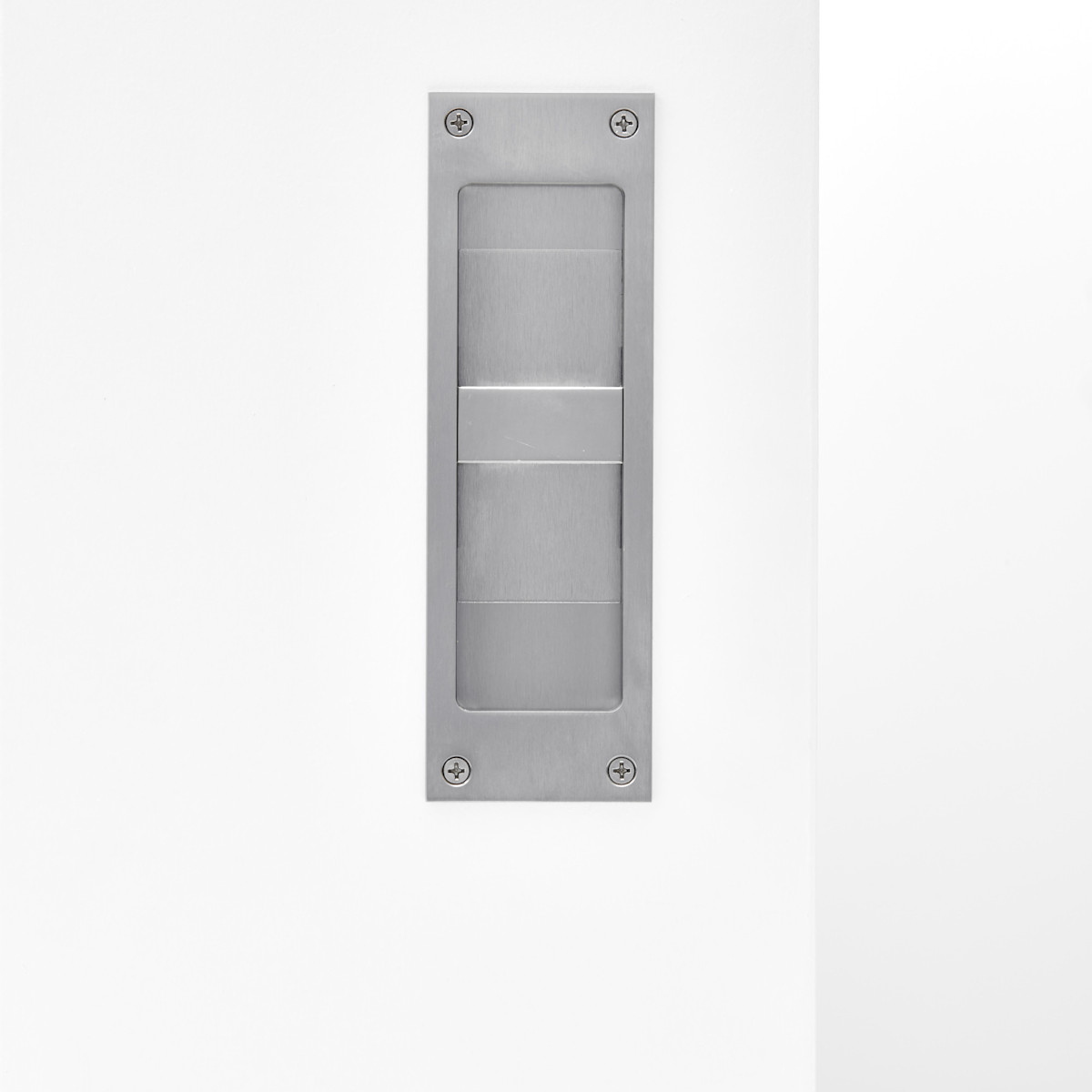

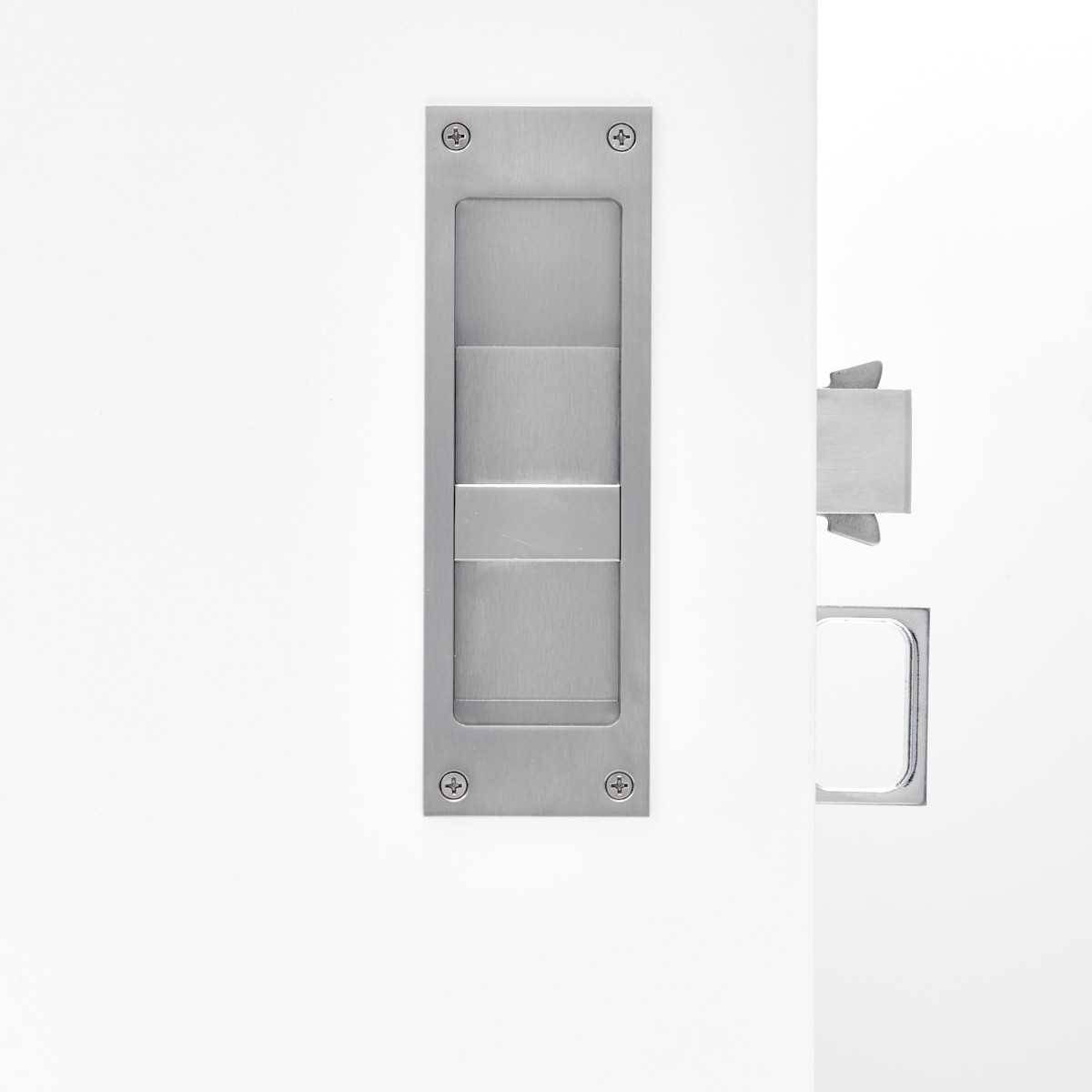

The C-90L-ET Privacy Lockset is a comprehensive lock, flush, and edge pull system that includes a quiet, slow-release edge pull mechanism. This set includes generously sized 2 1/4 in [57.2 mm] by 7 in [177.8 mm] flush pulls with a smooth thumb slide and an emergency release function, guaranteeing convenience and peace of mind. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/8 in [34.9 mm] to 2 1/4 in [57.2 mm]

Strike Plate: 1 1/4 in [31.8 mm] x 4 7/8 in [123.8 mm]

Dustproof Box: included

Backset: standard 2 3/4 in [69.9 mm] (alternative backsets available upon request)

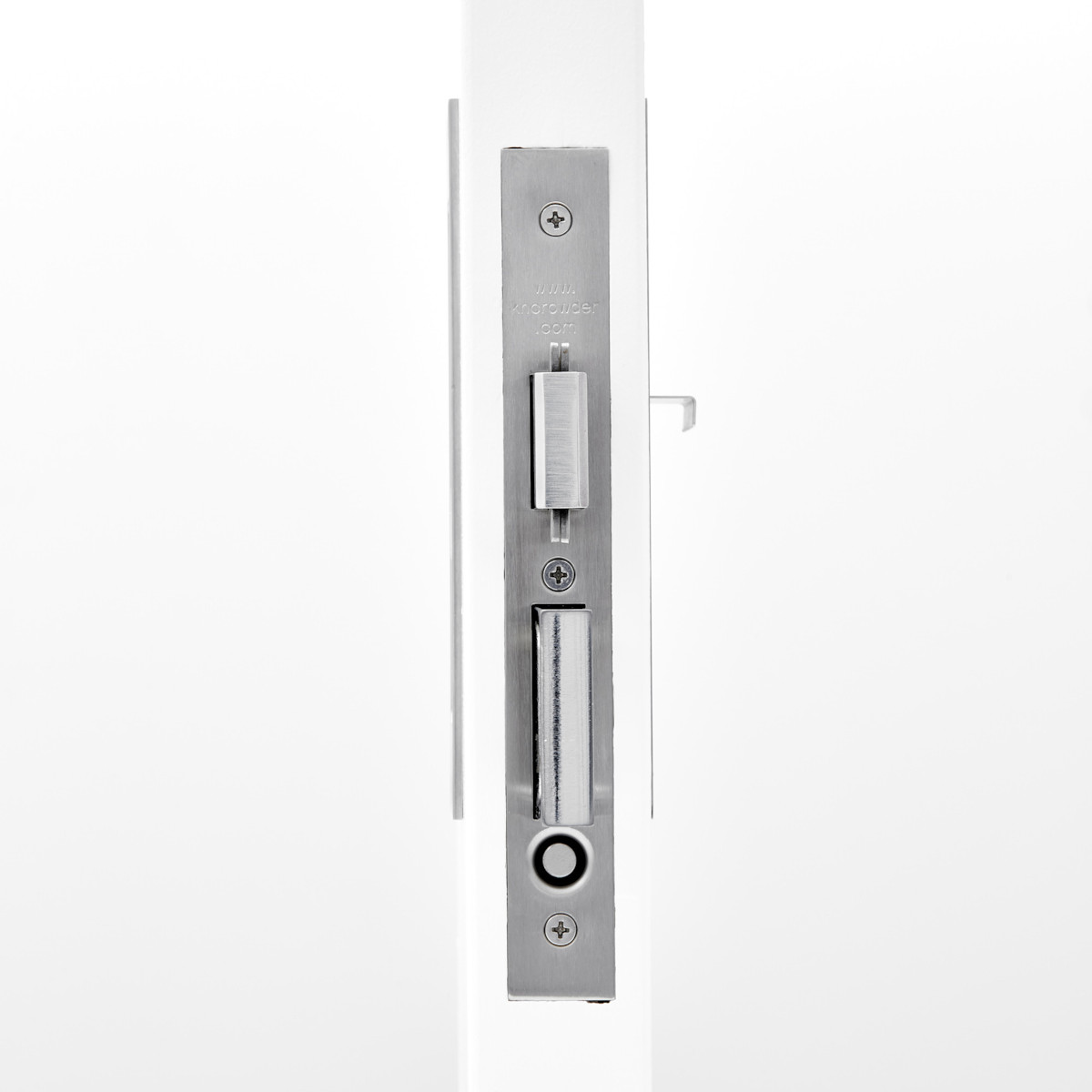

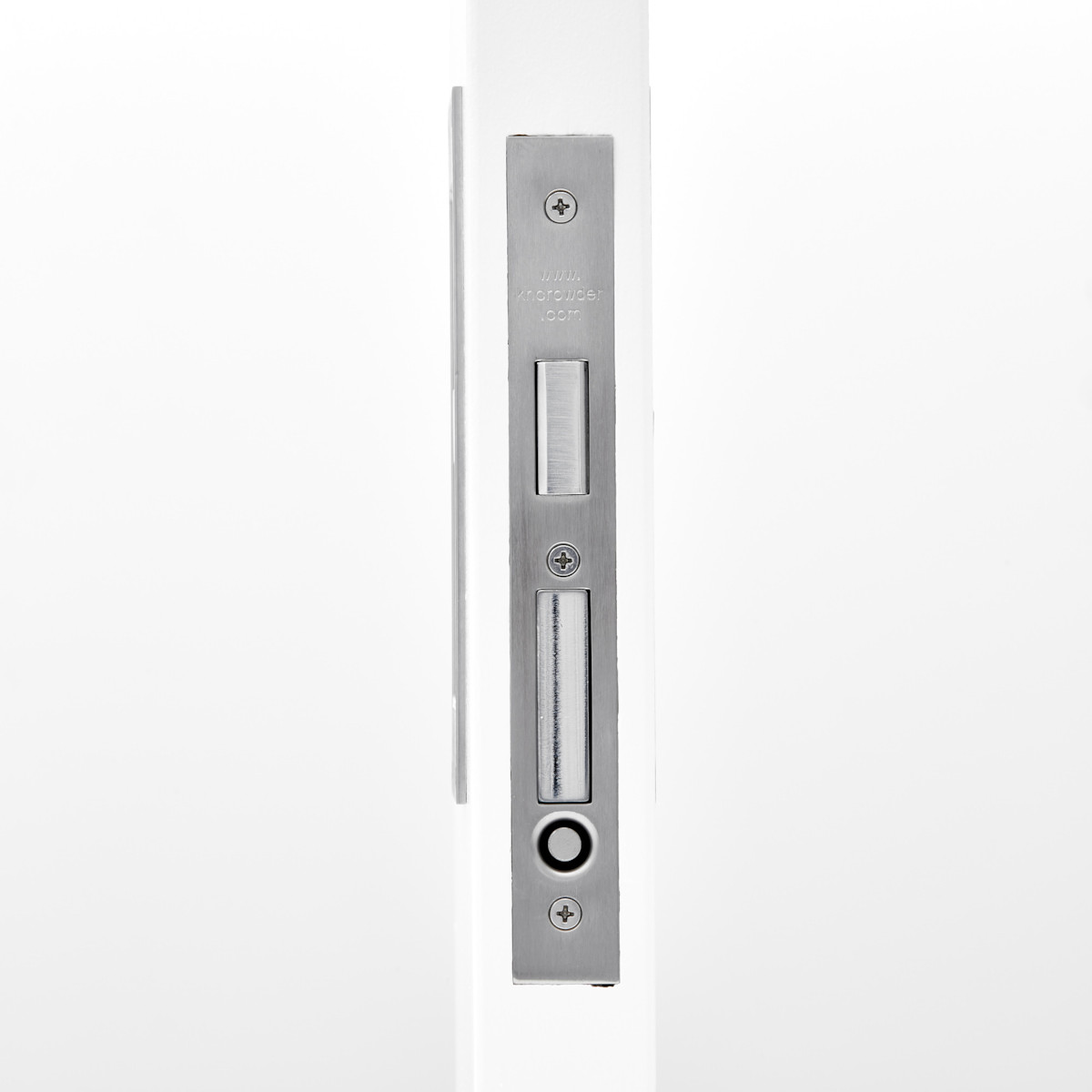

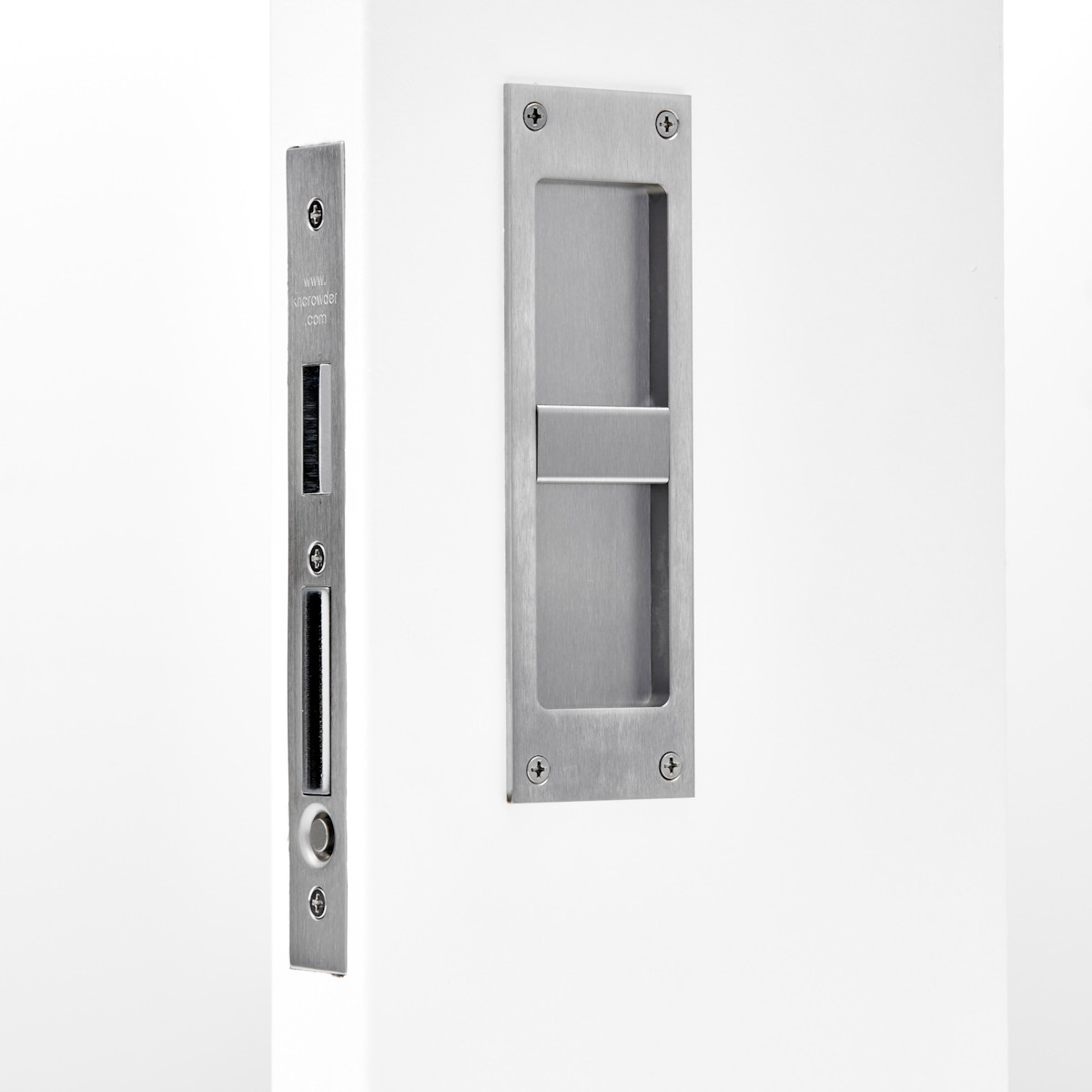

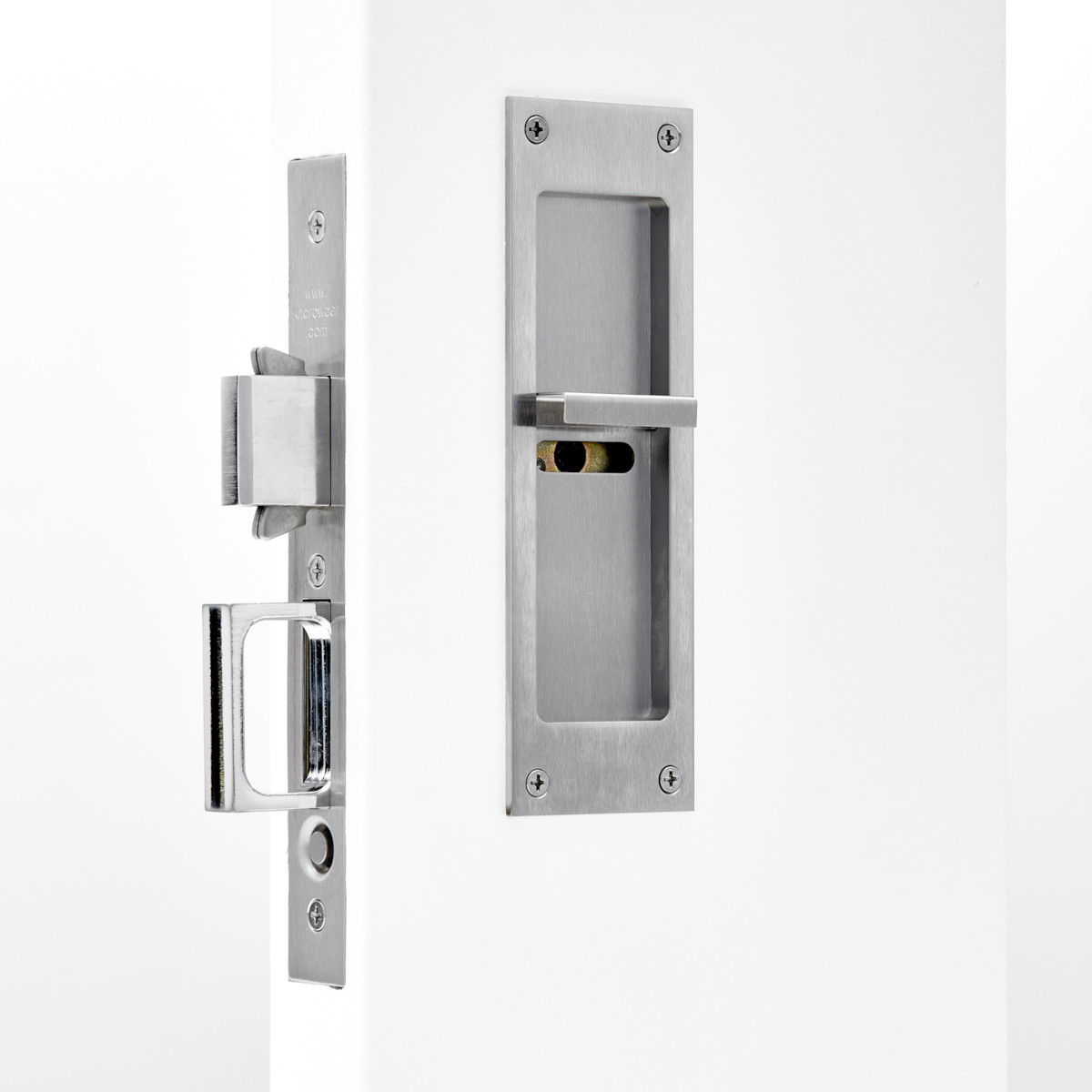

Included Components: one C-90L Lock and Edge Pull Body, one C-90E Emergency Release Flip Cover Flush Pull, and one C-90T Thumb Slide Flush Pull

HOW TO SPECIFY/ORDER

C-90L-ET x ( )

( ) = finish
