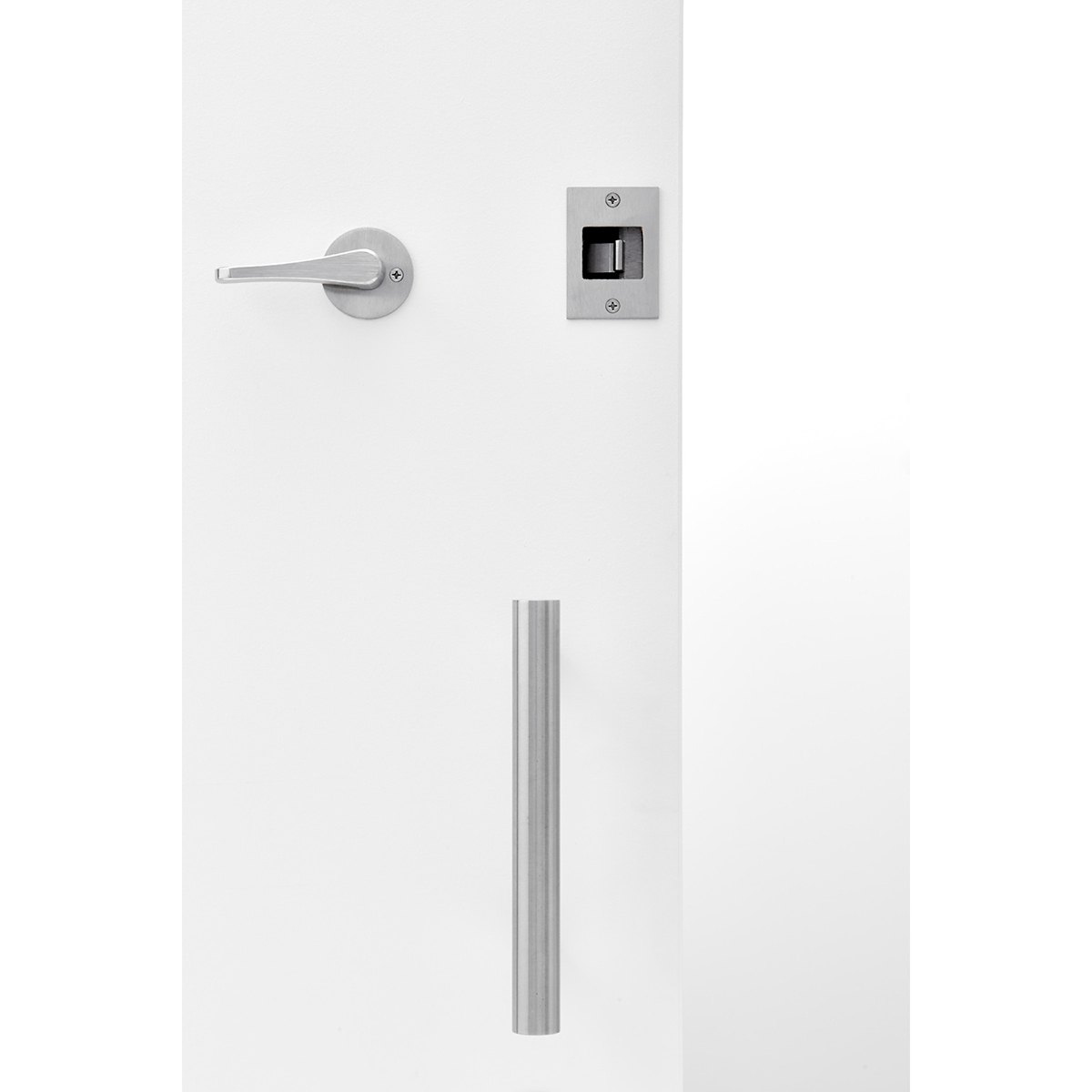

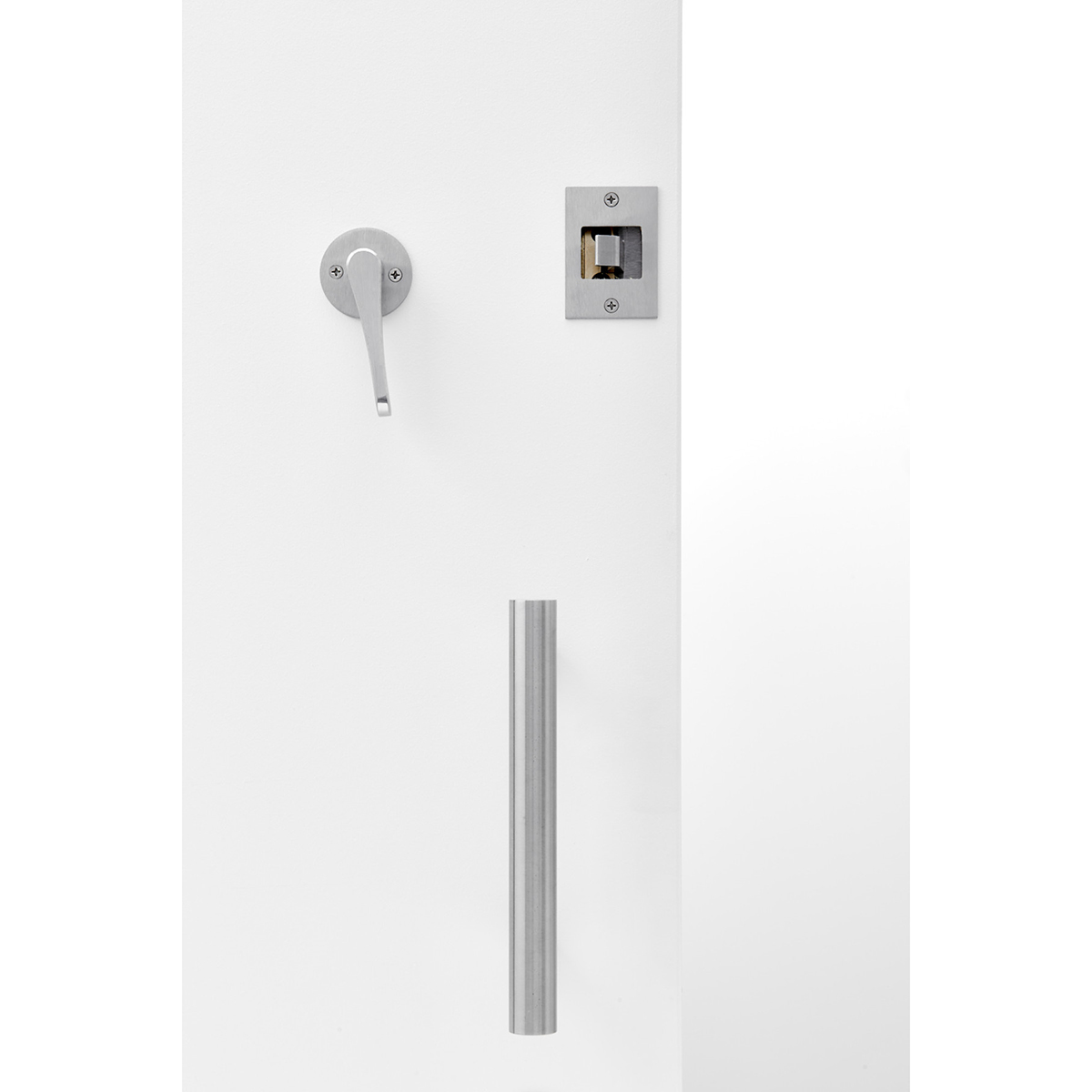

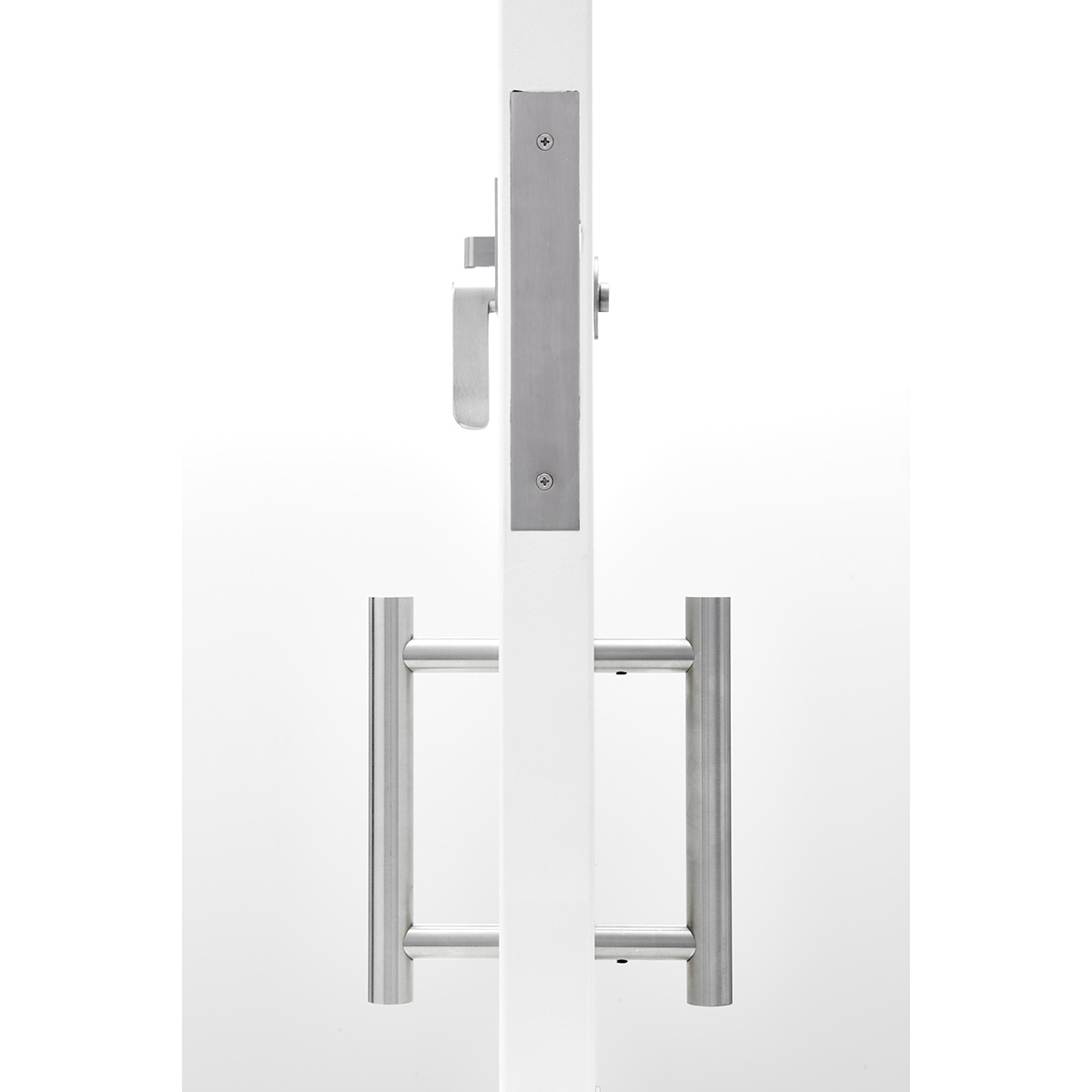

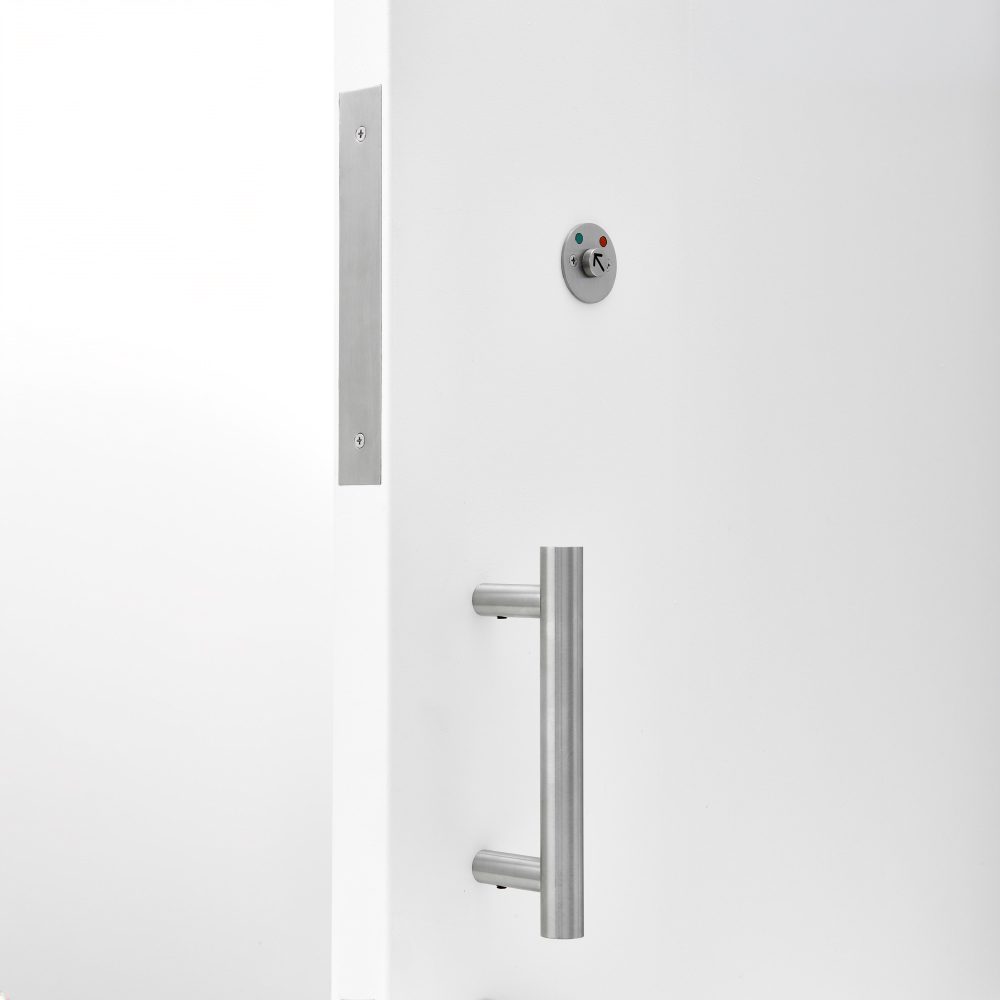

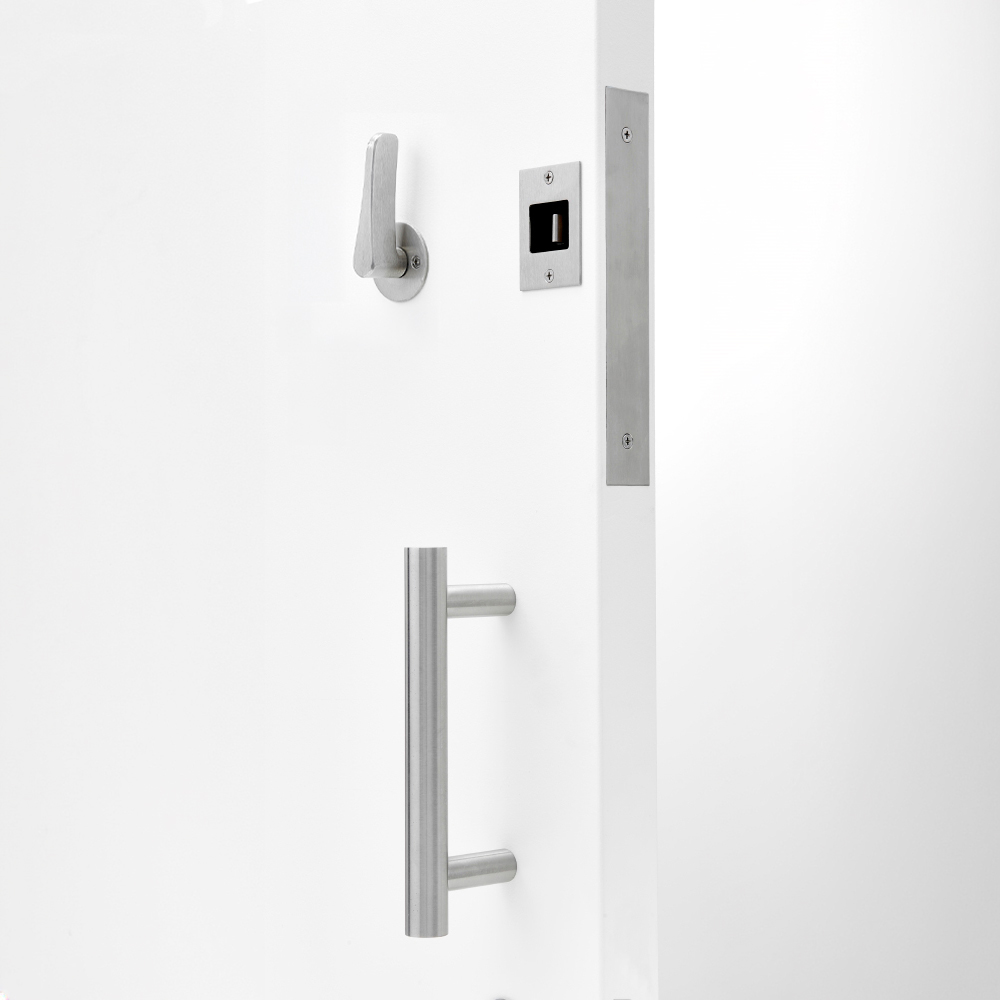

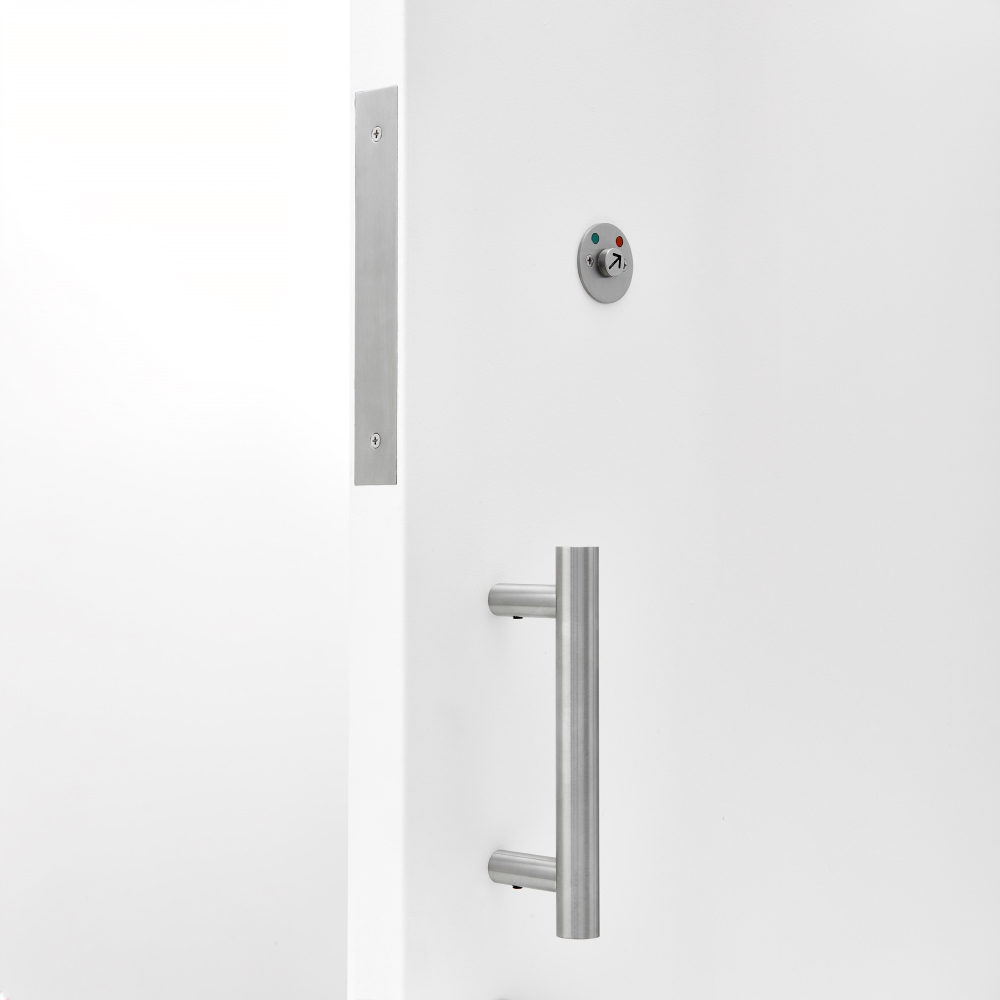

The C-94BL-HLDP Barn Door Lockset is a comprehensive lock, handle lever, and handle pull system that is barrier-free (ADA compliant). This set includes modern Ø7/8 in [57.2 mm] x 7 3/4 in [196.9 mm] robust metal handle pulls and an occupancy indicator with an emergency release function, ensuring its durability for a lifetime. One of the system's notable features is its concealed locking mechanism, which differs from the traditional projecting strike commonly found on barn doors. It is available in a variety of architectural finishes, with the option for custom finishing always available.

Door Thickness: 1 3/4 in [44.5 mm]

Strike Plate: 2 1/4 in [57.1 mm] x 4 in [101.6 mm]

Backset: standard 6 in [152.4 mm] backset for 3 in [76.2 mm] overlap (alternative backsets available upon request)

Handing: yes, specify left or right

Included Components: one C-94BL Barn Door Lock body, one C-90HL Handle Lever, one C-90HER Occupancy Indicator with Emergency Coin Turn Release, and one set of C-90DP Back-to-Back Handle Pulls

HOW TO SPECIFY/ORDER

C-94BL-HLDP x ( ) LH
Left-Handed

C-94BL-HLDP x ( ) RH
Right-Handed

( ) = finish
