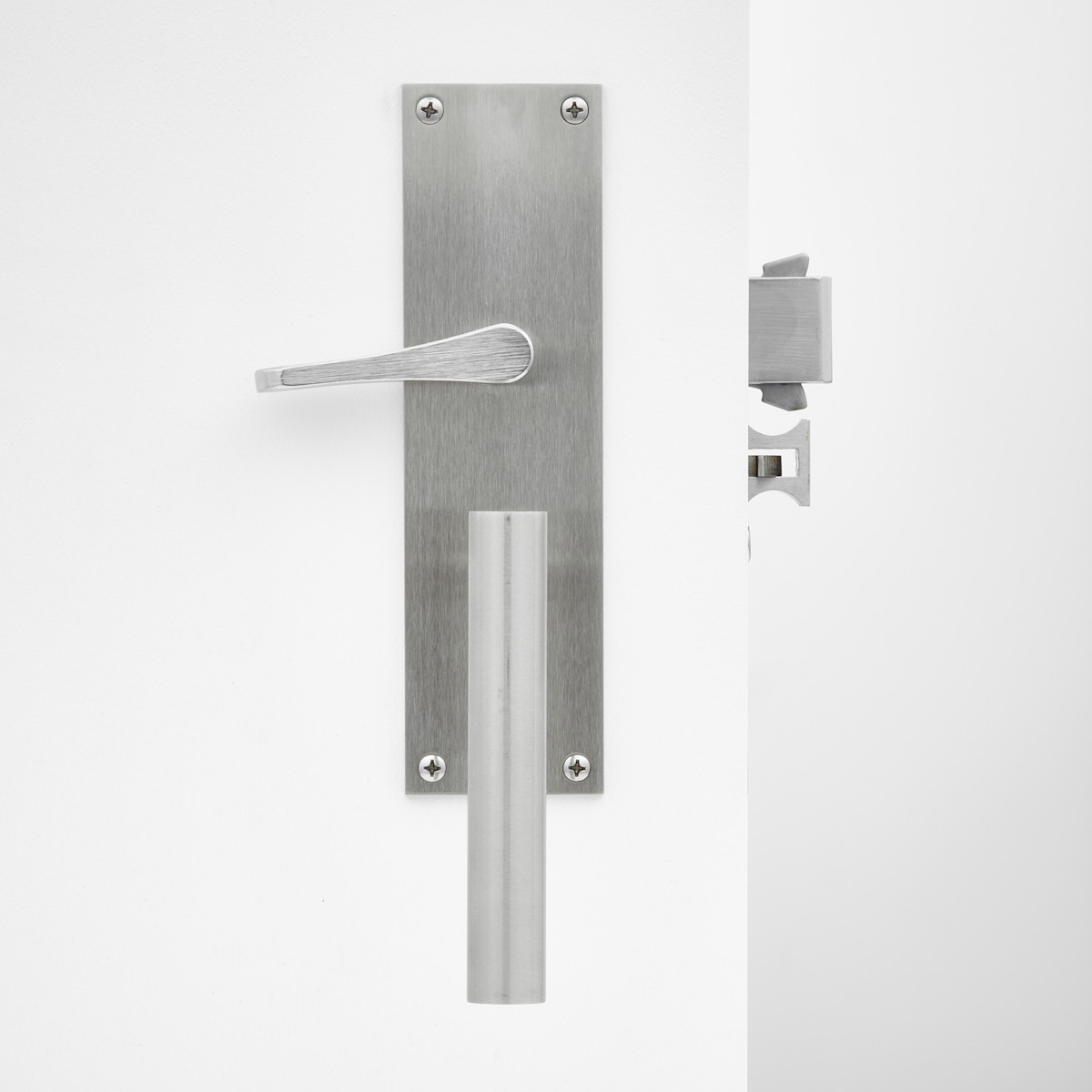

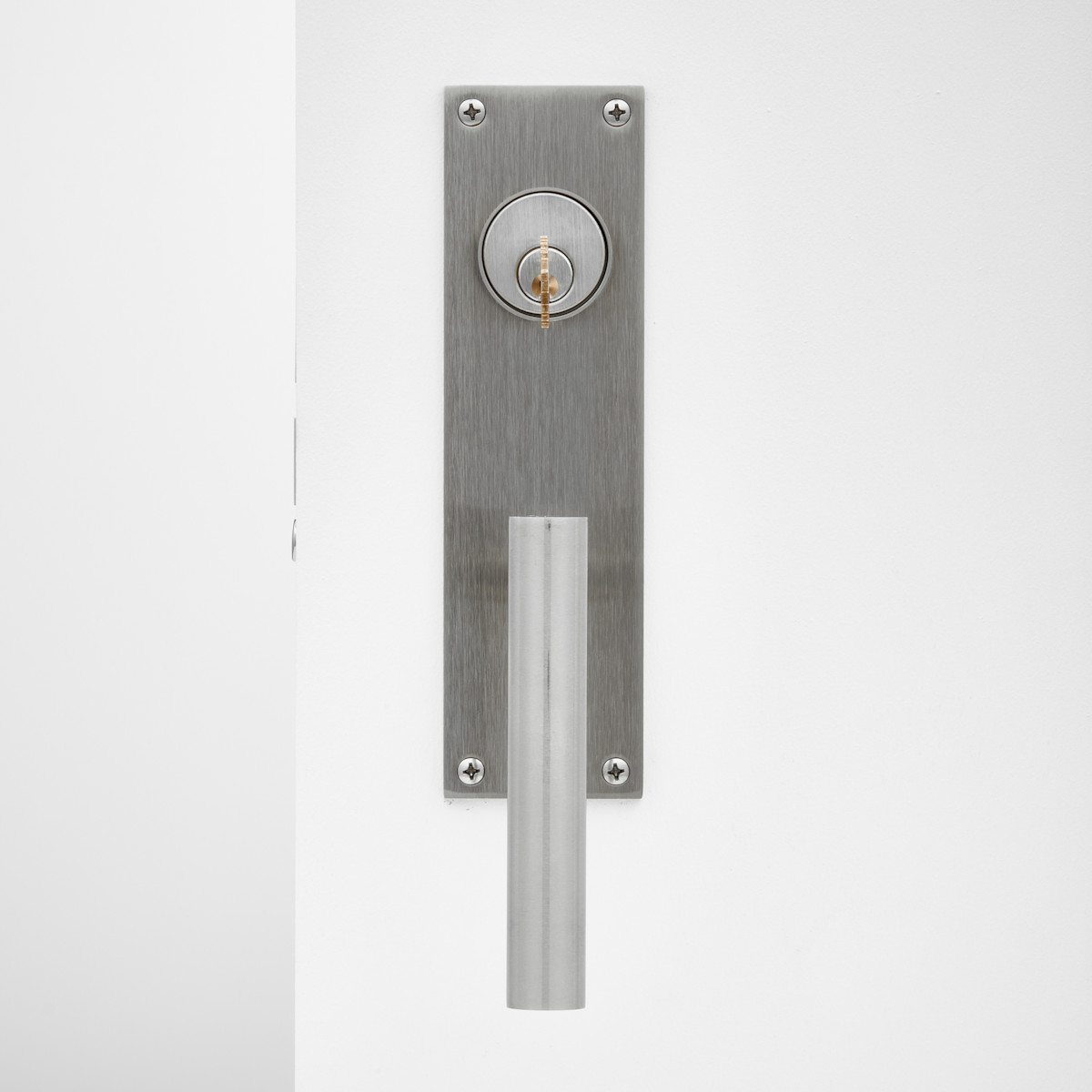

The C-95SL-CHL Security Lockset is a barrier-free (ADA compliant) self-latching system that offers added flexibility by allowing the incorporation of a deadbolt for enhanced security. This set includes contemporary Ø7/8 in [22.2 mm] by 5 3/8 in [136.5 mm] handle levers on generously sized 2 1/4 in [57.2 mm] by 8 in [203.8 mm] trims - one with a 1 in [25.4 mm] cylinder and one with an ADA lever, ensuring a comfortable grip and smooth operation for all users. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/4 in [44.5 mm]

Strike Plate: 1 1/4 in [31.8 mm] x 4 7/8 in [123.8 mm]

Dustproof Box: included

Backset: standard 2 3/4 in [69.9 mm] backset (alternative backsets available upon request)

Handing: specify left or right

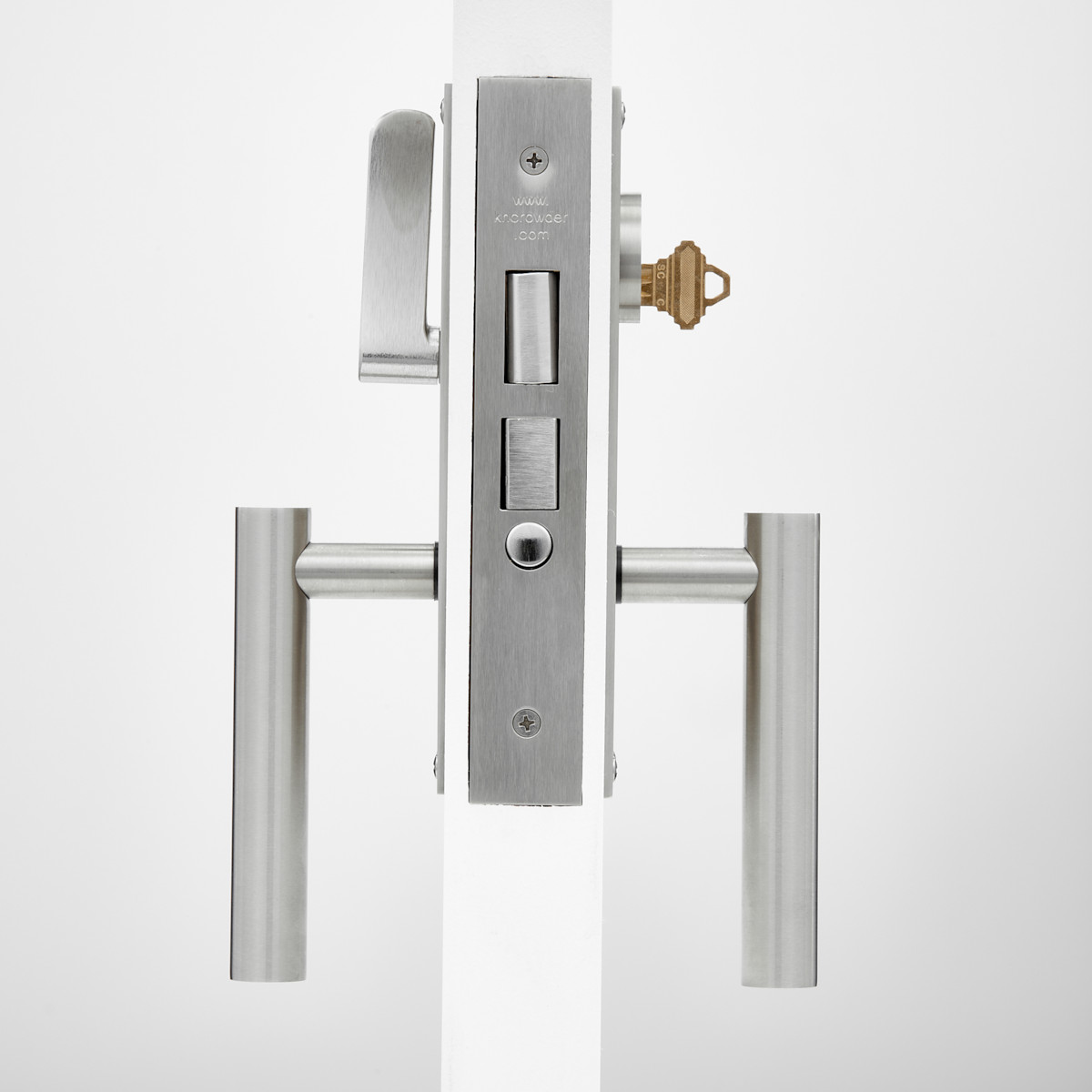

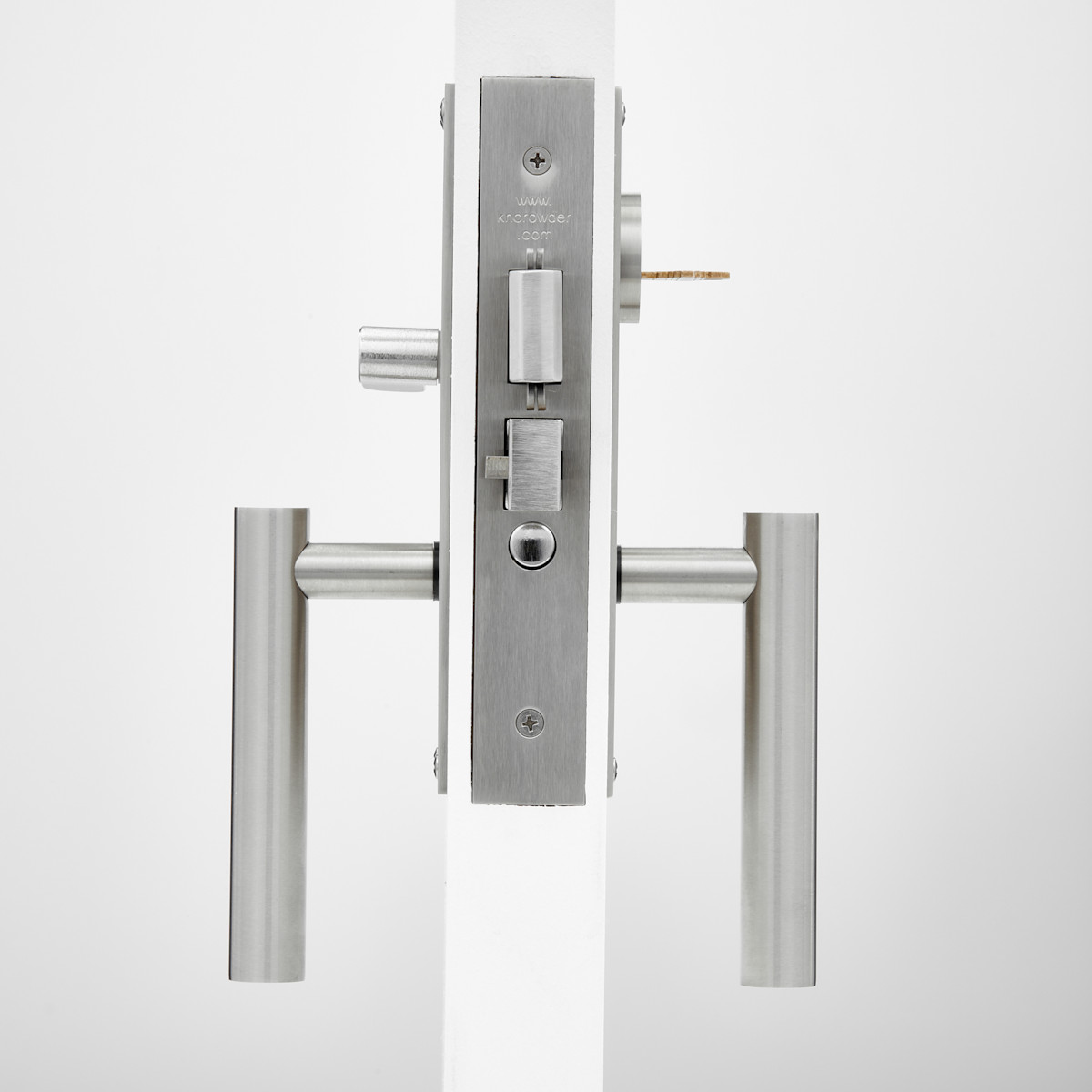

Included Components: one C-95ESL Entry Self Latching Lock and Edge Pull Body, one C-95CL Cylinder Self-Latching Lever Trim, one Cylinder, and one C-95TL ADA Turn Self-Latching Lever Trim

HOW TO SPECIFY/ORDER

C-95SL-CHL x ( ) LH
Left-Handed

C-95SL-CHL x ( ) RH
Right-Handed

( ) = finish
