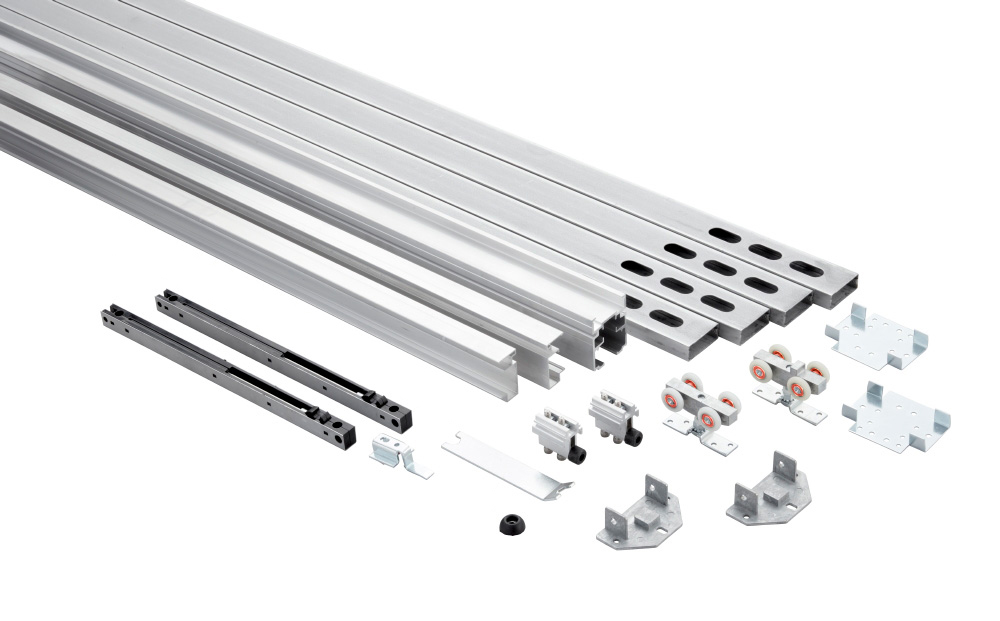

Our Catch ‘N’ Close Crowder Frame Pocket Door Kits have been perfected.
As always, our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch ‘N’ Close closing system enables the door to glide into position without any assistance.
Using gas spring technology, we created a system that allows sliding doors to close and stay closed. The door will automatically slow and close itself the final few inches without user assistance. This design has the unique ability to safeguard the door and hardware from wear and tear.
Easy Connect Hangers
Our Easy Connect Hangers were engineered to simplify the installation process. The top plate features a cut-out that accepts the Easy Connect bolt, reducing your installation time.
SUPERIOR DESIGN & COMPONENTS
KN Crowder is committed to innovation and quality engineered, durable, time-tested door hardware. Our engineering experts provide solutions to your specific hardware needs. Our raw materials are of the highest quality and North American sourced, with all manufacturing done in Canada. With over 150, 000 cycle tests or the equivalent of 30 years of normal use, our hangers stand strong without experiencing any measurable wear or increase in noise.

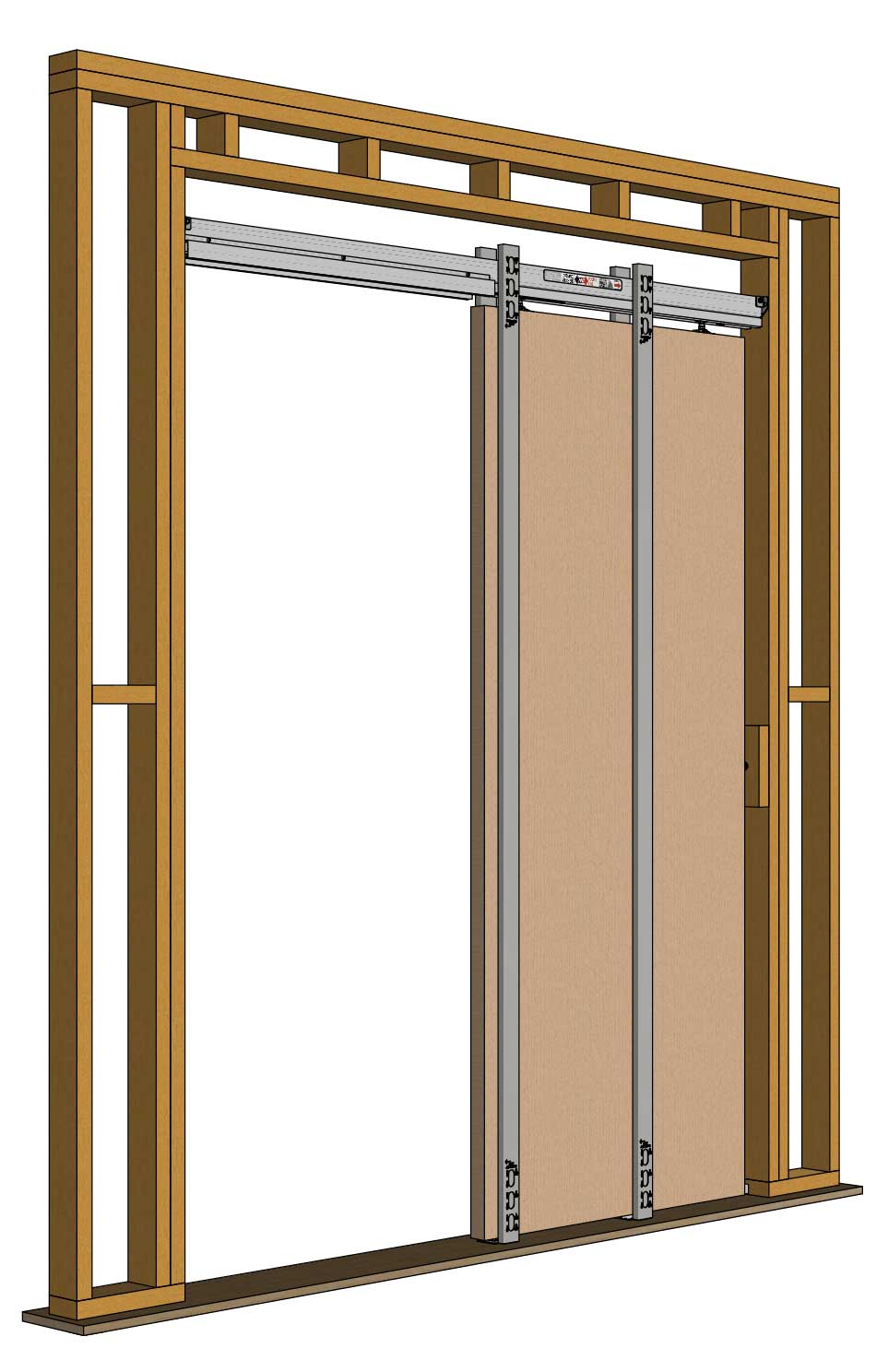

TYPE CC-( )W
Ideal for 1 3/4 in [44.5 mm] thick doors
TYPE CC-( )B
Ideal for 1 3/8 in [34.9 mm] thick doors
( ) = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg])
For doors from 30 in [762 mm] to 48 in [1219 mm] wide x 80 in [2032 mm] to 96 in [2438 mm] high, please provide door size when specifying/ordering
For doors less than 29 in (736 mm) wide, please refer to Type CC-NR
For bi-parting doors, use two single door kits and specify one CPD-2X4-Joiner Kit
