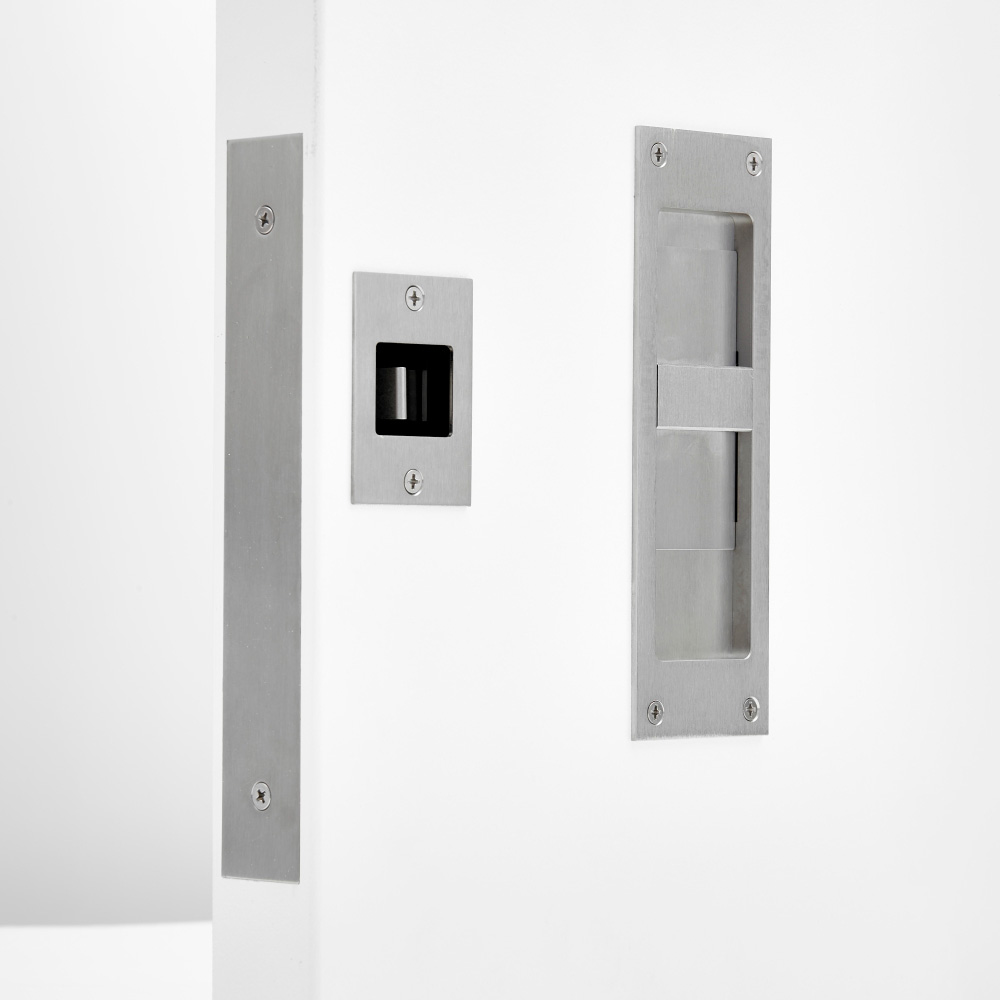

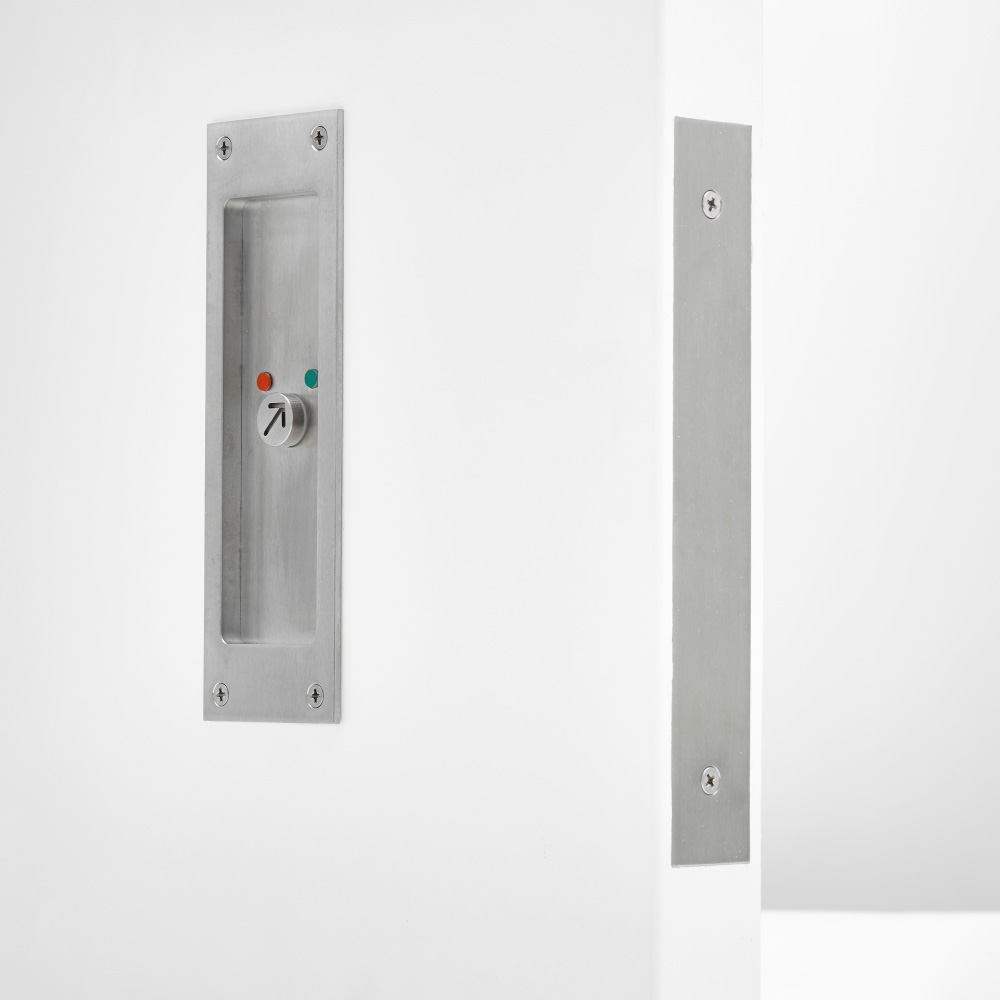

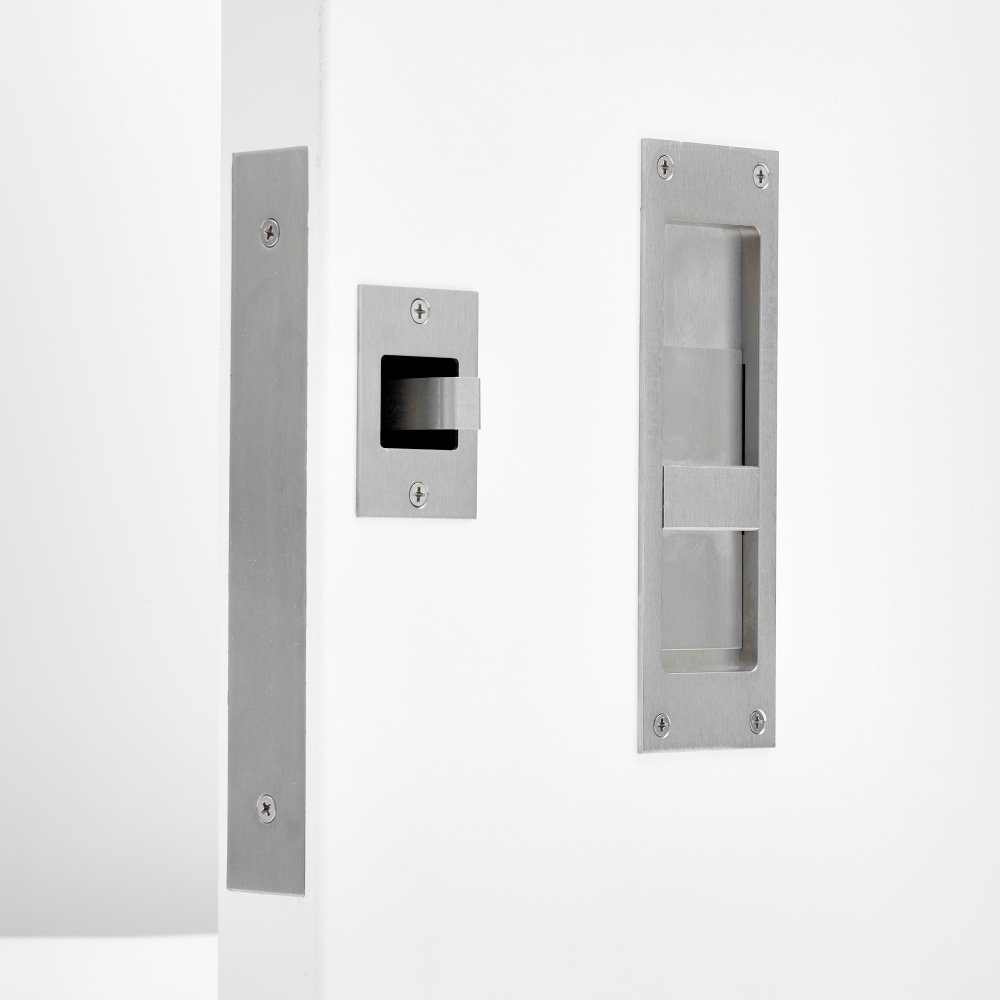

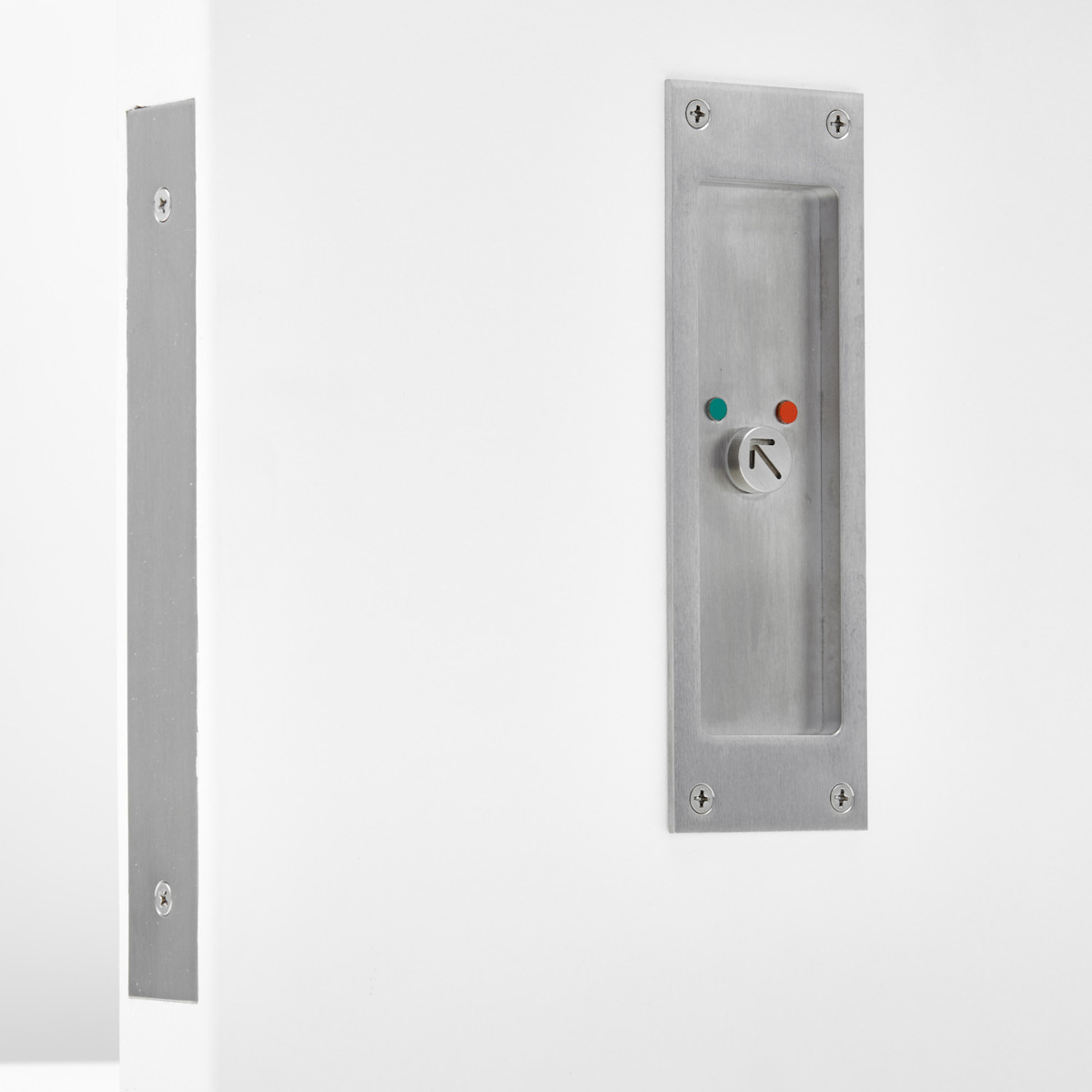

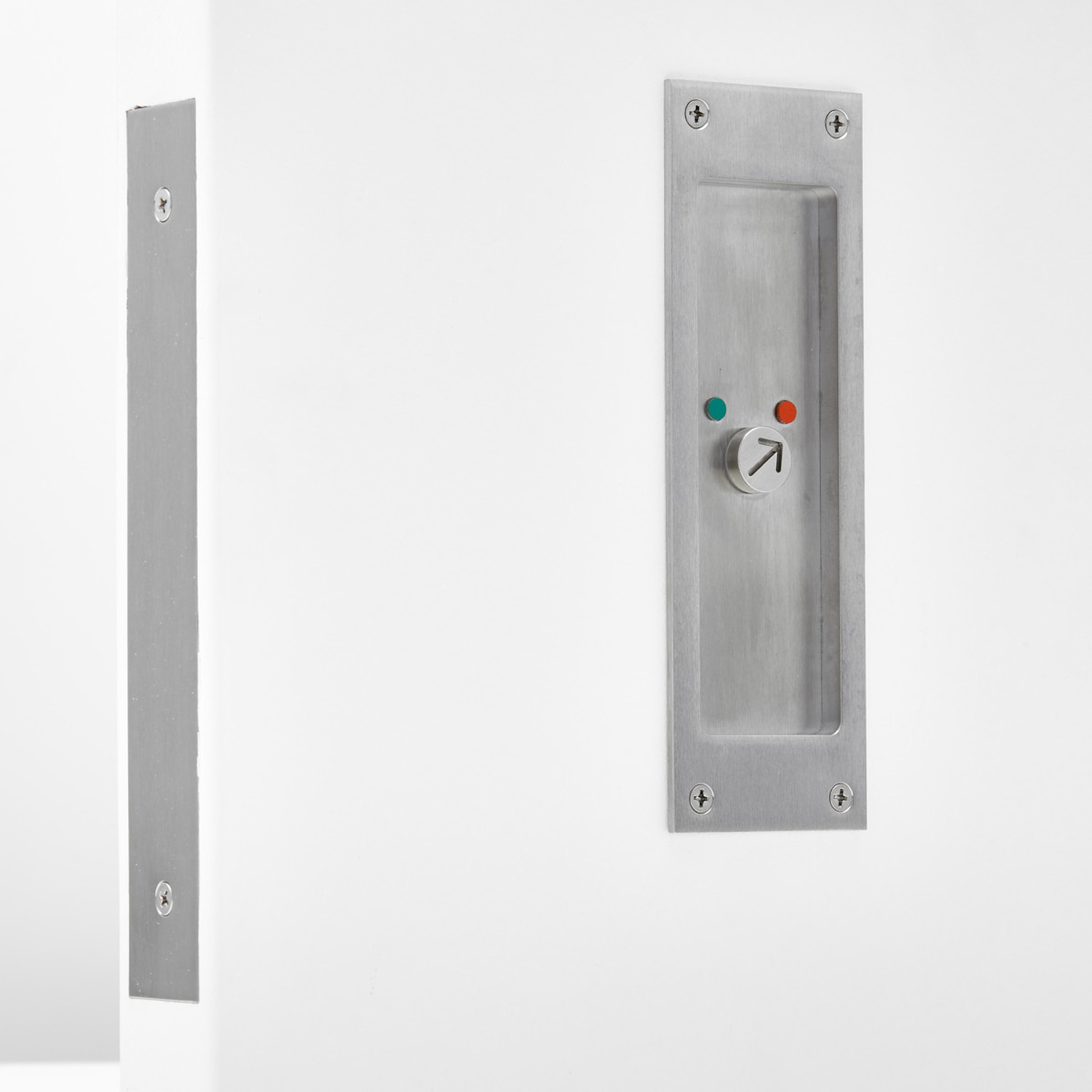

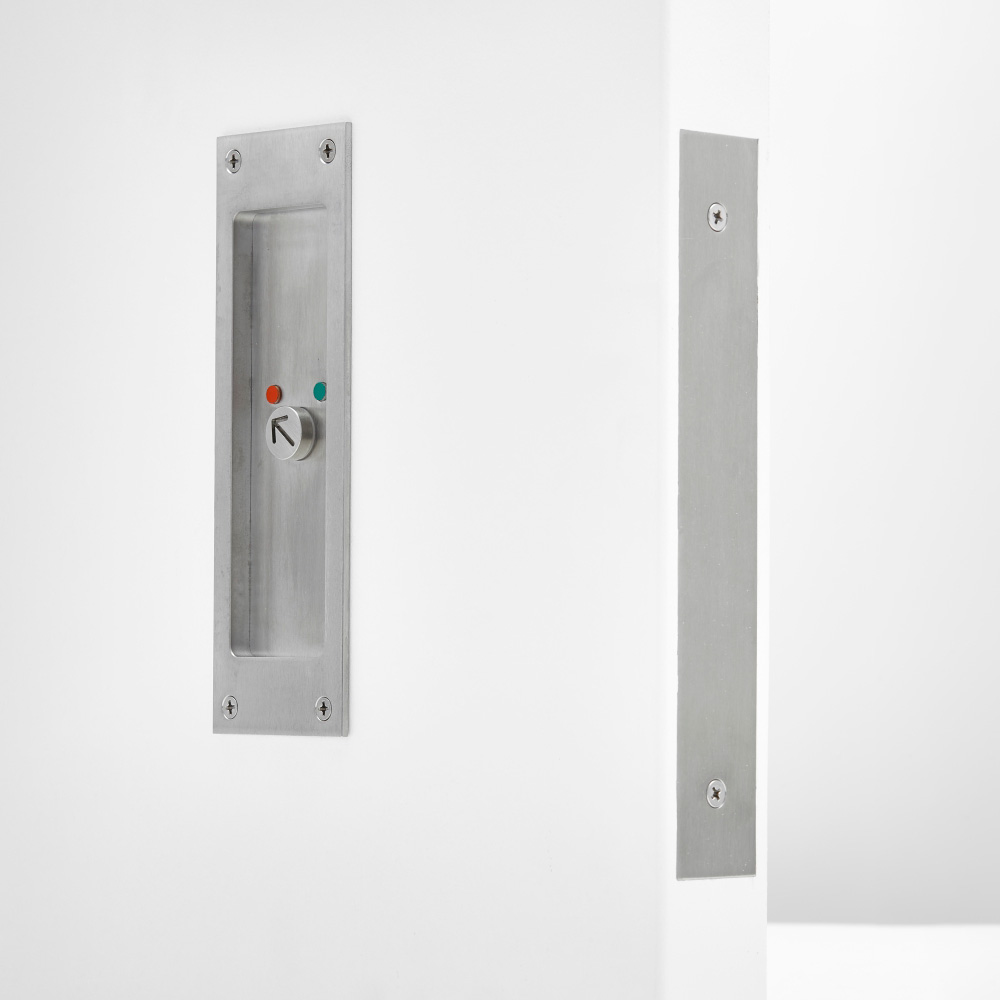

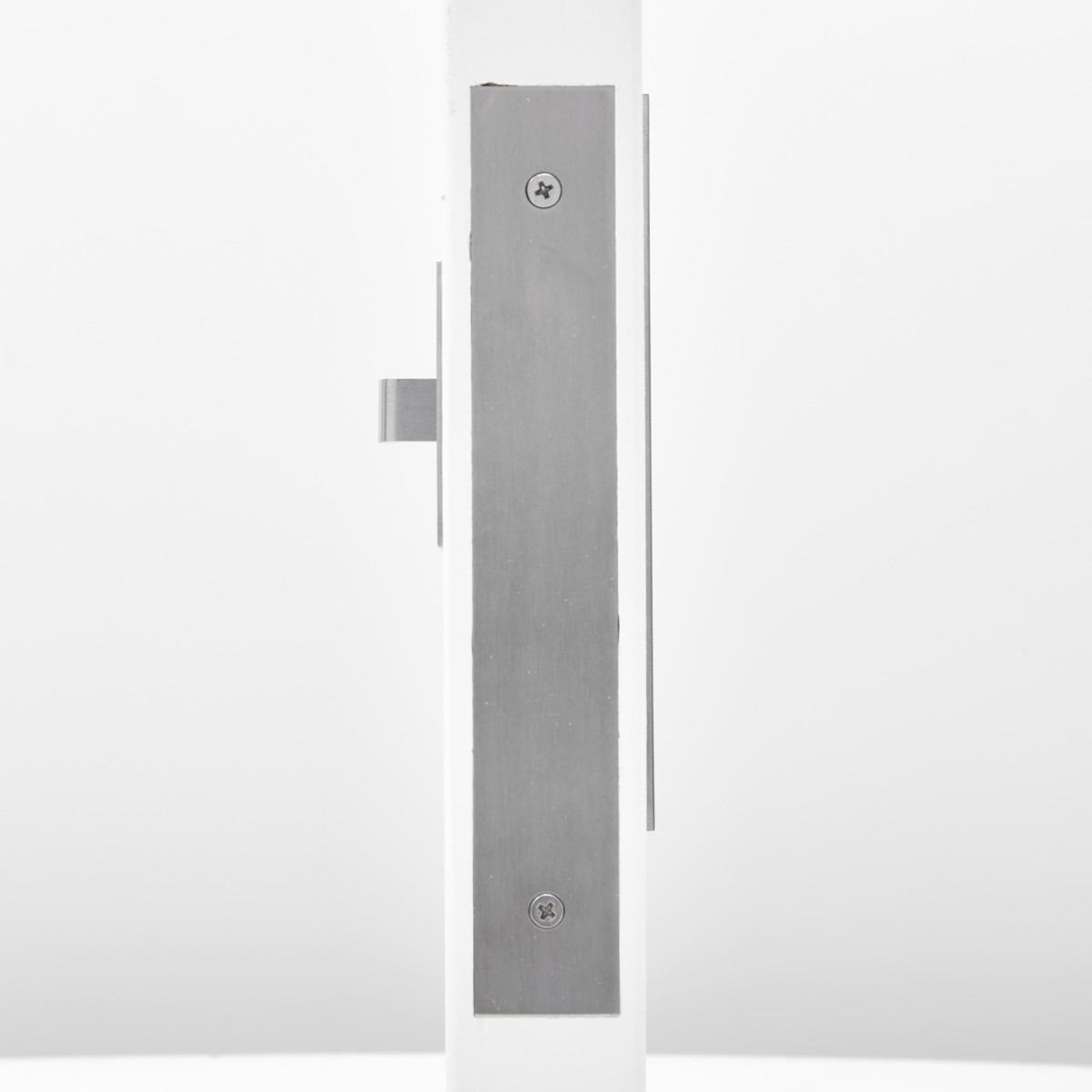

The C-94BL-OT Barn Door Lockset is a comprehensive lock and flush pull system crafted with precision and attention to detail. This set includes generously sized 2 1/4 in [57.2 mm] by 7 in [177.8 mm] flush pulls, one with a smooth thumb slide, for ample grip space and comfortable operation for all users. The emergency release occupancy indicator provides an added layer of safety by allowing the door to be unlocked quickly and easily from the outside. One of the lockset's notable features is its concealed locking mechanism, which differs from the traditional projecting strike commonly found on barn doors. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/4 in [44.5 mm]

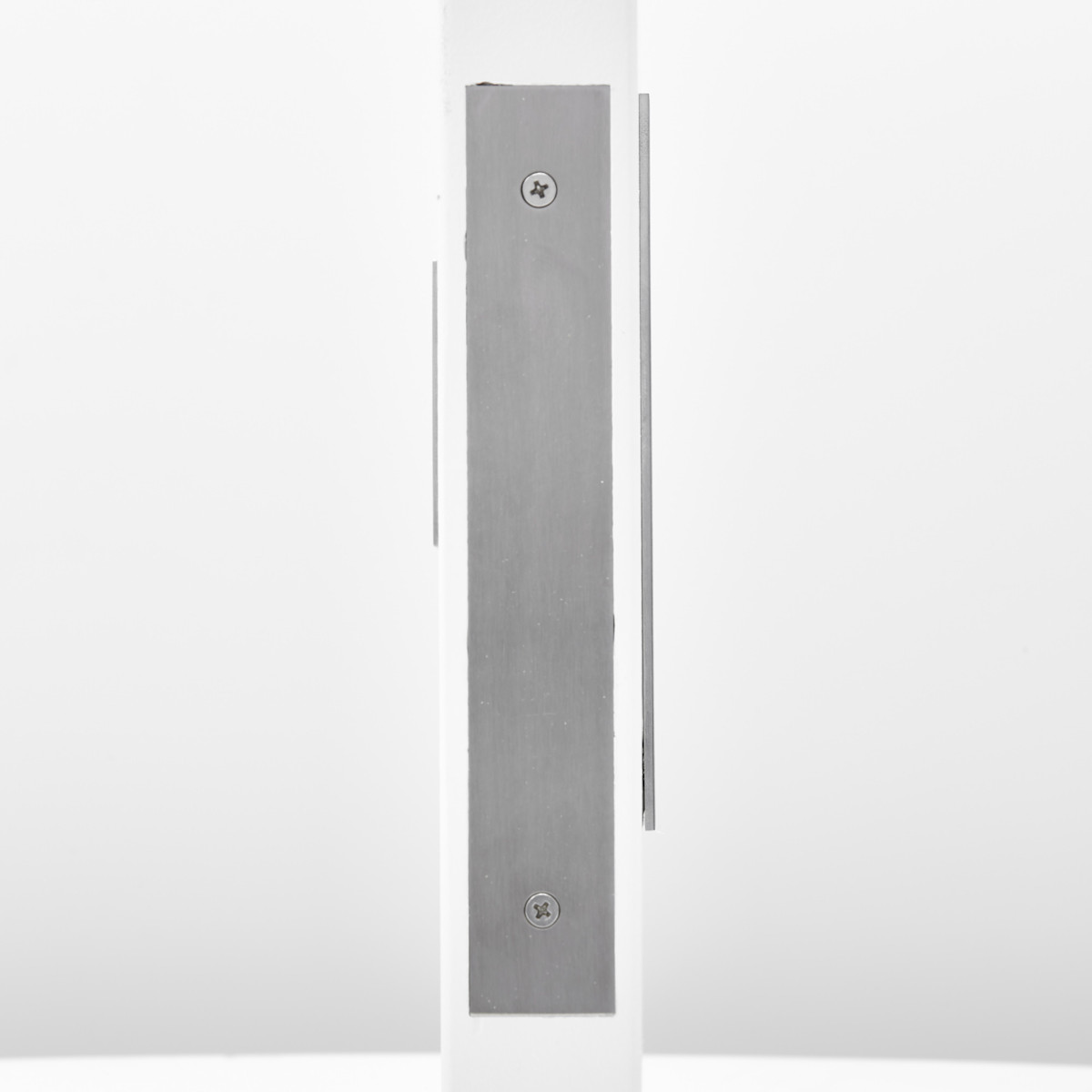

Strike Plate: 2 1/4 in [57.2 mm] x 4 in [101.6 mm]

Backset: standard 6 in [152.4 mm] backset for 3 in [76.2 mm] overlap (alternative backsets available upon request)

Handing: specify left or right

Included Components: one C-94BL Barn Door Lock Body, one C-90OI Occupancy Indicator with Coin Turn Emergency Release Flush Pull, and one C-90T Thumb Slide Flush Pull

HOW TO SPECIFY/ORDER

C-94BL-OT x ( ) LH
Left-Handed

C-94BL-OT x ( ) RH
Right-Handed

( ) = finish
