Type B

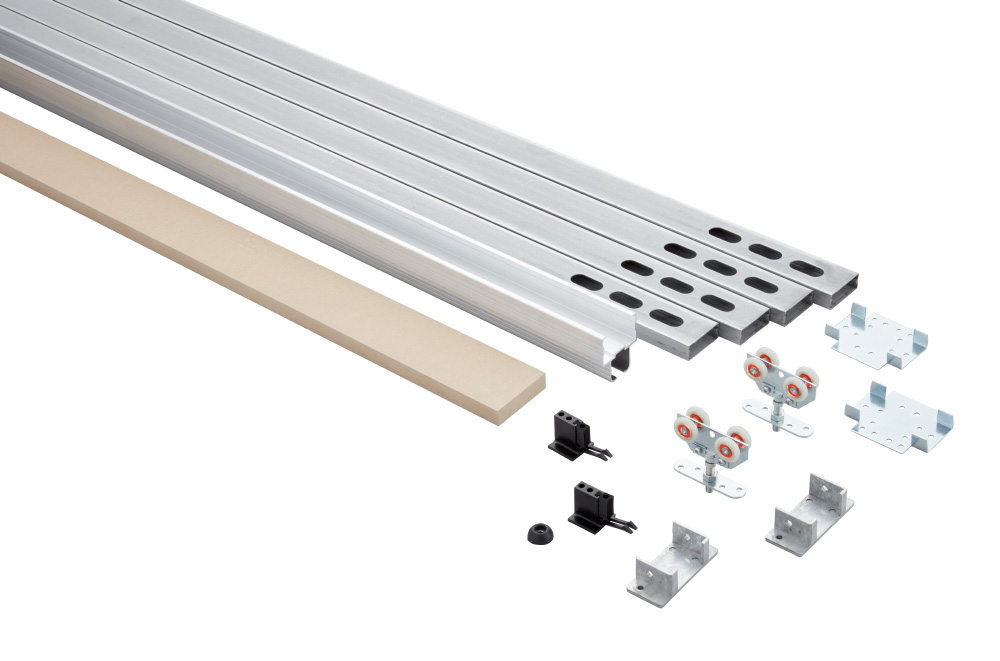

Our C-400 hangers combined with nylon wheels with precision ball bearings ensure smooth and quiet door operation.

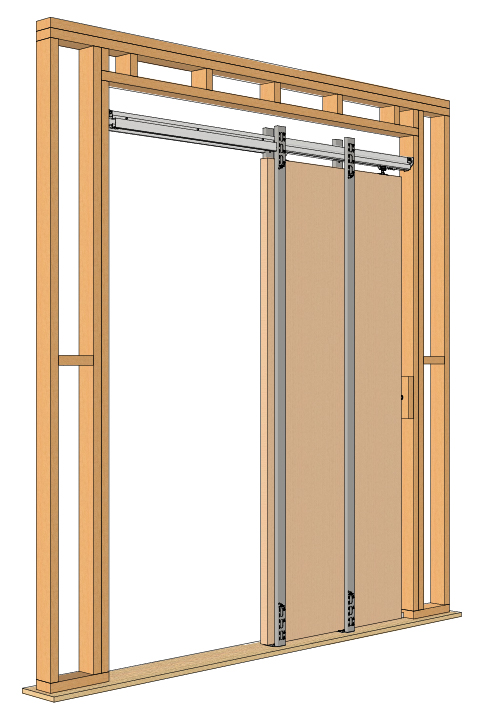

Complete with roll formed steel uprights for less deflection and easy to screw into for drywall fastening
Choose to install the door before OR after the drywall goes up
Adjust door height and plumb while the door is up
Faster and easier installation than a traditional pocket built on-site
For single or bi-parting door applications
For 2X4 wood wall construction or 3 5/8" metal stud wall construction
For 2X6 wood wall construction, please refer to Type C-2X6
For 6" metal stud wall construction, please refer to Type C-6MS
For doors up to 36 in [914 mm] wide x 96 in [2438 mm] high x 1 3/4 in [44.5 mm] thick & up to 125 lbs. [57 kg]!

TYPE B-W
with C-914/CP-913 Guide System
Recommended for 1 3/4 in [44.5 mm] doors

TYPE B-B
with C-201/CP-200 Guide System
Recommended for 1 3/8 in [34.9 mm] doors

TYPE B
with Nylon Guides

For doors from 18 in [457 mm] to 36 in [914 mm] wide x 80 in [2032 mm] to 96 in [2438 mm] high, please provide door size when specifying/ordering

For bi-parting doors, use two single door kits and specify one CPD-2X4-Joiner Kit
